1583 D.O.T Push In Bulkhead Connector

1583 D.O.T Push In Bulkhead Connector

Product Features:
■■ Brass Collet
■■ Buna N O-ring
■■ Stainless Steel Tube Support
■■ Meets D.O.T. FMVSS571.106
■■ Meets SAE J2494 & SAE J2494-3

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines

Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing

Reference Part No:
1583DOT

Contact Us

SPECIFICATIONS

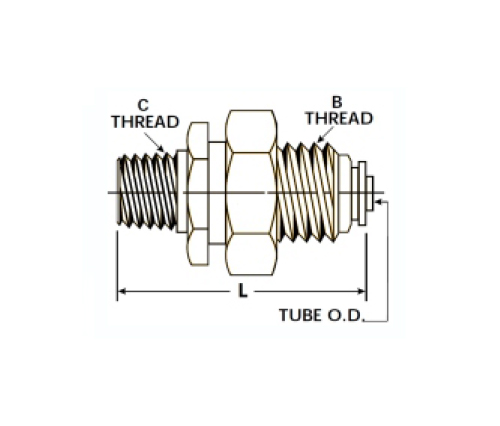

PART# TUBE  O.D×Thread NPTF C B E L
1583-DOT-6D 3/8×1/2 1-3/8 1"-14 1-1/4 1.99
1583-DOT-8D 1/2×1/2 1-3/8 1"-14 1-1/4 1.99

The Push in bulkhead connector is a high pressure, general purpose brass compression fitting for 1/2" and 3/4" I.D. Nitrile rubber tubing with integral male threading (NPT 1-1/4" pipe). The fitting is designed to be used with a variety of delicate, precision devices such as oil separators, pressure gauges, temperature sensors and other measuring instruments requiring maximum protection against vibration and shock. The Push In Bulkhead Connector has been manufactured in accordance with SAE J2494 & SAE J2494-3 standards to provide the highest degree of performance available. Unique rubber brushes assure no leakage, while maintaining flexibility at all temperatures.
