1562 D.O.T  Push In Union

1562 D.O.T Push In Union

Product Features:
■■ Brass Collet
■■ Buna N O-ring
■■ Stainless Steel Tube Support
■■ Meets D.O.T. FMVSS571.106
■■ Meets SAE J2494 & SAE J2494-3

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines

Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing

Reference Part No:
AQ62DOT  -  62PMT  -  1862  -  DQ62DOT  -  1562-DOT

Contact Us

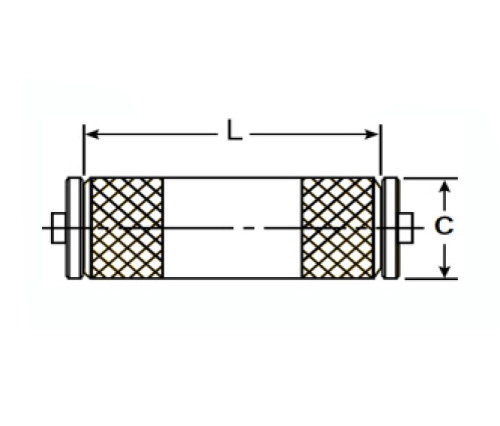

SPECIFICATIONS

PART# TUBE SIZE O.D C L
1562-DOT-5/32 5/32 .38 1.18
1562-DOT-4 1/4 .44 1.58
1562-DOT-6 3/8 .66 1.76
1562-DOT-8 1/2 .78 1.95
1562-DOT-10 5/8 .91 2.08
1562-DOT-12 3/4 1.06 2.20

This product features brass collet, buna n o-ring, stainless steel tube support and meets DOT FMVSS571.106. This Nylon Push-In-Fitting Tee allows easy insertion of tubing into the fitting body. The extra long stem will allow use with large hose fittings such as Bellowed Fittings, Elbows and Cones.This is a Push In Fitting Tee is made of 304 stainless steel that can be installed using standard hand tools. It meets SAE J2494, J2494-3 and D.O.T FMVSS571.106 requirements for automotive use. The fittings meet or exceed the industry standards for chemical compatibility and corrosion resistance, with compression strength up to 8,000 lbs (35 kN) for air fittings and 5,000 lbs (22 kN) for water fittings.Tube fittings designed to meet DOT specifications. The threaded collar is for quick and easy installation to tubing, which is available in sizes from 1/4" to 5/8". Other fittings are available in sizes from 1/8"-1".
