1565 Push in Connect Fittings Elbow

1565 Push in Connect Fittings Elbow

Product Features:
■■ Brass Collet
■■ Buna N O-ring
■■ Stainless Steel Tube Support
■■ Meets D.O.T. FMVSS571.106
■■ Meets SAE J2494 & SAE J2494-3

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines

Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing

Reference Part No:
AQ65DOT  -  165PMT  -  1865  -  DQ65DOT  -  1565-DOT

Contact Us

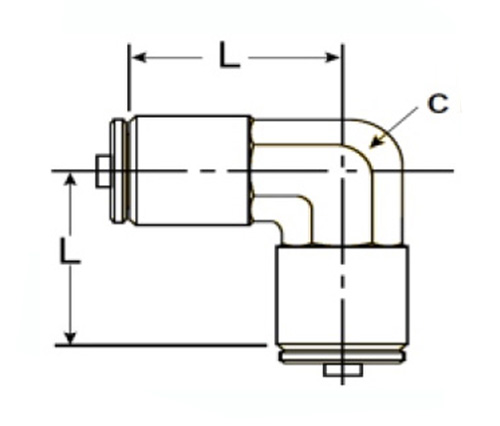

SPECIFICATIONS

PART# TUBE O.D C L
1565-DOT-4 1/4 3/8 .92
1565-DOT-6 3/8 1/2 .96
1565-DOT-8 1/2 5/8 1.16
1565-DOT-10 5/8 11/16 1.19
1565-DOT-12 3/4 15/16 1.40

Push in fitting for SAE J844 Type A, B, C and D Nylon Tubing. Used with Buna O-ring and stainless steel tube supports to allow for secure installation of hoses such as air brakes, power steering lines and more. The fitting is manufactured with high quality materials to ensure proper functionality and long life.1565 Push in Connect Fittings Elbow is a fitting used with rubber tubing. It has a brass collet. This fitting is manufactured by TUSA P/N: 1565-DOT.Pneumatic Connect fittings are used in conjunction with tubing to create a barrier-free, permanent or temporary assembly that utilizes standard pneumatic components.
