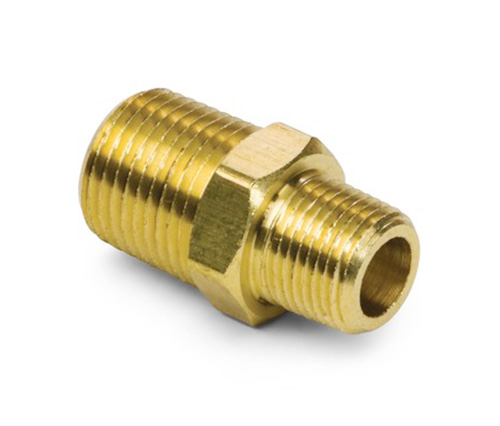

3325# Reducing Hex Nipple Pipe Fittings

3325# Reducing Hex Nipple Pipe Fittings

Product Features:                                                   Markets:
■■ All brass construction                                            ■■ Industrial
■■ Meets functional requirements of                       ■■ Construction
SAE J530 and SAE J531                                              ■■ Heavy duty truck
■■ Threads made to dryseal standards                    ■■ Mobile
■■ Both forgings and extrusions available              ■■ Factory/process automation

Applications:                                                         Compatible Tubing:
■■ Air Lines                                                                    ■■ Copper
■■ Water Line                                                                ■■ Brass
■■ Cooling Lines                                                           ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
216P  - 3325  -  379  -  122AH  -  122B

Contact Us

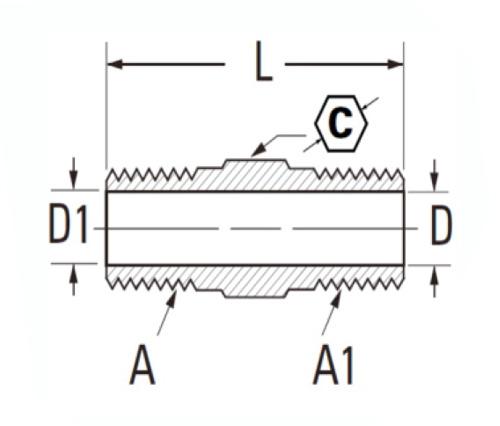

SPECIFICATIONS

PART#

Thread size

C

D

D1

L

3325L-AA

1/8×1/8

7/16

.219

.219

.91

3325-AA

1/8×1/8

7/16

.219

.219

.97

3325L-BA

1/4×1/8

9/16

.219

.219

1.00

3325-BA

1/4×1/8

91/6

.312

.219

1.19

3325L-BB

1/4×1/4

9/16

.312

.312

1.12

3325-BB

1/4×1/4

9/16

.312

.312

1.38

3325L-CA

3/8×1/8

11/16

.438

.219

1.11

3325-CA

3/8×1/8

11/16

.438

.219

1.22

3325L-CB

3/8×1/4

11/16

.438

.312

1.19

3325-CB

3/8×1/4

11/16

.438

.312

1.41

3325L-CC

3/8×3/8

11/16

.438

.438

1.25

3325-CC

3/8×3/8

11/16

.438

.438

1.41

3325L-DB

1/2×1/4

7/8

.562

.319

1.34

3325-DB

1/2×1/4

7/8

.562

.319

1.62

3325L-DC

1/2×3/8

7/8

.562

.438

1.41

3325-DC

1/2×3/8

7/8

.562

.438

1.62

3325L-DD

1/2×1/2

7/8

.662

.662

1.50

3325-DD

1/2×1/2

7/8

.562

.562

1.81

3325-ED

3/4×1/2

1-1/16

.750

.562

1.50

3325-EE

3/4×3/4

1-1/16

.750

.750

1.96

3325-HH

1"×1"

1-3/8

.960

.960

2.30

* L:Light

*REF.SAE NO.130137

Our 3325 series reducing hex nipple pipe fittings are made with brass alloy that is 100% lead-free. We offer both forgings and extrusions of this fitting. Each nipple is manufactured to meet functional requirements of SAE J530 or SAE J531, both heavy duty truck markets. Forged 3325 series pipe nipples are available in both large and standard size threads. These nipples are compatible with copper, brass and iron tubing ranging from ¼” through ½” Schedule 40.  Our factory sales engineers will help you make sure you have the right fitting for your job! The 3325 series reducing nipple pipe fitting is used to reduce outside diameter pipe sizes. The 3325 series features a forgings of brass construction and comes with NACE certification as well as A-607, AWS and ASME stamping markings on the front. Available in different pressures up to 1000 psi.
Reducing hex nipple pipe fittings are ideal for most applications. They provide compact, space-saving designs and are used to join piping systems together. These male and female connectors are made of strong wrought brass materials and equipped with precision machined threads to ensure smooth operation.
