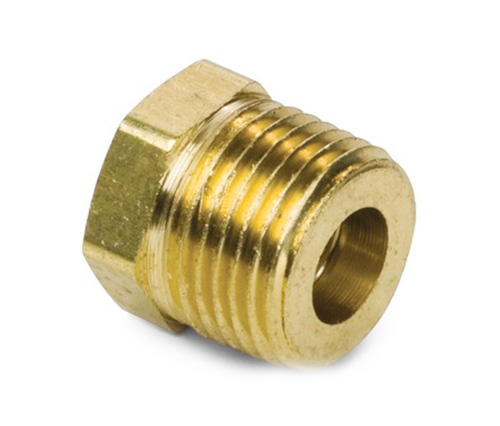

3220# Hex Bushing Brass Pipe Fittings

Product Features:       Markets:
■■ All brass construction ■■ Industrial
■■ Meets functional requirements of ■■ Construction
SAE J530 and SAE J531 ■■ Heavy duty truck
■■ Threads made to dryseal standards ■■ Mobile
■■ Both forgings and extrusions available   ■■ Factory/process automation

Applications: Compatible Tubing:
■■ Air Lines   ■■ Copper
■■ Water Line   ■■ Brass
■■ Cooling Lines ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
373 - 3220 - 209P - 110A - 110B

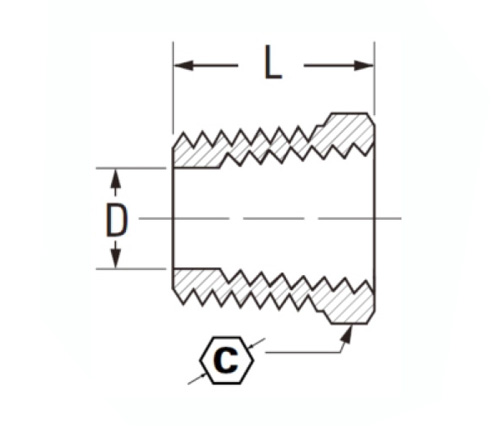

SPECIFICATIONS

PART#	Thread size	C	D	L
3220L-BA	F1/4×M1/8	9/16	.32	.62
3220-BA	F1/4×M1/8	9/16	.32	.75
3220-CA	F3/8×M1/8	11/16	.337	.75
3220L-CB	F3/8×M1/4	11/16	.435	.69
3220-CB	F3/8×M1/4	3/4	.435	.75
3220-DA	F1/2×M1/8	7/8	.56	.87
3220L-DB	F1/2×M1/4	7/8	.56	.87
3220-DB	F1/2×M1/4	7/8	.56	1.0
3220L-DC	F1/2×M3/8	7/8	.56	.87
3220-DC	F1/2×M3/8	7/8	.56	1.0
3220-EA	F3/4×M1/8	1-1/8	.74	.94
3220-EB	F3/4×M1/4	1-1/8	.708	.94
3220-EC	F3/4×M3/8	1-1/8	.708	.94
3220-ED	F3/4×M1/2	1-1/8	.708	.94
3220-HB	F1"×M1/4	1-3/8	.95	1.12
3220-HC	F1"×M3/8	1-3/8	.95	1.12
3220-HD	F1"×M1/2	1-3/8	.95	1.12
3220-HE	F1"×M3/4	1-3/8	.95	1.31

*REF,SAE NO.130140

Any company that requires a high-quality, castable fitting that's both sturdy and versatile should choose this product. This fitting offers unmatched strength and durability. It comes in a variety of sizes and types to suit any application, which simplifies your work flow and makes installation more efficient. It's made from 100 percent durable brass for long-lasting results.This product is designed for use in air lines, water lines and cooling lines. It can handle up to 1000 psi pressure and the temperature range is -65˚ to +250˚F. Pressure range up to 1000 psi and temperature range of -65˚ to 250˚F. Features brass construction. Both forgings and extrusions available.
