3300# Reducer Coupling Pipe Fittings

3300# Reducer Coupling Pipe Fittings

Product Features:                                                   Markets:
■■ All brass construction                                            ■■ Industrial
■■ Meets functional requirements of                       ■■ Construction
SAE J530 and SAE J531                                      ■■ Heavy duty truck
■■ Threads made to dryseal standards                    ■■ Mobile
■■ Both forgings and extrusions available              ■■ Factory/process automation

Applications:                                                         Compatible Tubing:
■■ Air Lines                                                                    ■■ Copper
■■ Water Line                                                                ■■ Brass
■■ Cooling Lines                                                           ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
377  - 3300  -  208P  -  108  -  119B  -  119AH

Contact Us

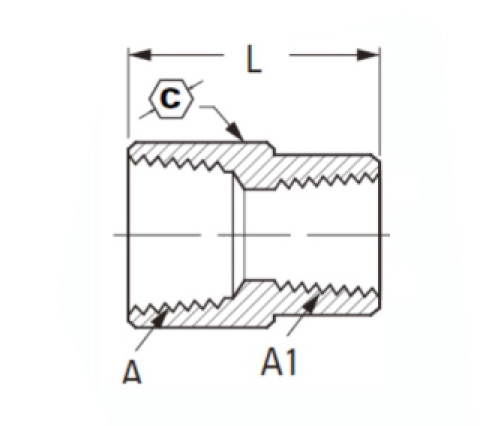

SPECIFICATIONS

PART# Thread size C L
3300-BA 1/4×1/8 3/4 .97
3300L-BA 1/4×1/8 5/8 .83
3300-CA 3/8×1/8 7/8 .94
3300-CB 3/8×1/4 7/8 1.16
3300L-CB 3/8×1/4 13/16 1.00
3300L-DA 1/2×1/8 15/16 1.19
3300-DB 1/2×1/4 1-1/16 1.28
3300L-DB 1/2×1/4 15/16 1.11
3300-DC 1/2×3/8 1-1/16 1.38
3300L-DC 1/2×3/8 15/16 1.19
*3300-EC 3/4×3/8 1-3/16 1.19
*3300-ED 3/4×1/2 1-3/16 1.19

*Not to SAE specs

*Ref.SAE.NO.130138

*L:Light

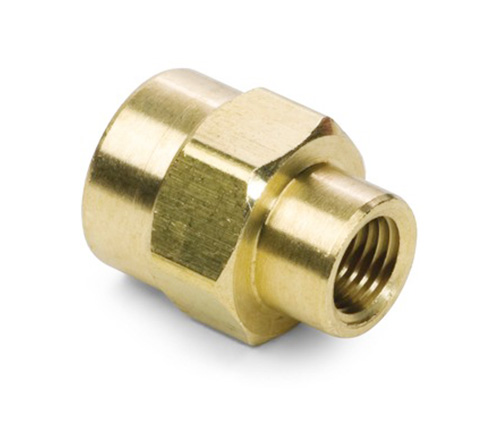

FM3300 Series reducer coupling pipe fittings are used for joining 2 different diameter tubes in piping systems, with a straight through configuration. Standard SAE pipe reducer coupling with a weld on male end and female end. Meets functional requirements of SAE J530, SAE J531 and other industrial applications. All brass construction makes this fitting suitable for heavy duty truck applications. Threads made to dryseal standards are compatible with copper tubing and pipe.
Our fitting is made from 100% Alloys and materials, with brass coupling ends. This fitting has been tested for pressure up to 1000 psi . Comes in a pressurized cylinder with all camlocks and fittings.
