3000# Brass Bulkhead Coupling Pipe Fittings

3000# Brass Bulkhead Coupling Pipe Fittings

Product Features:                                                   Markets:
■■ All brass construction                                            ■■ Industrial
■■ Meets functional requirements of                       ■■ Construction
SAE J530 and SAE J531                                              ■■ Heavy duty truck
■■ Threads made to dryseal standards                    ■■ Mobile
■■ Both forgings and extrusions available              ■■ Factory/process automation

Applications:                                                         Compatible Tubing:
■■ Air Lines                                                                    ■■ Copper
■■ Water Line                                                                ■■ Brass
■■ Cooling Lines                                                           ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Contact Us

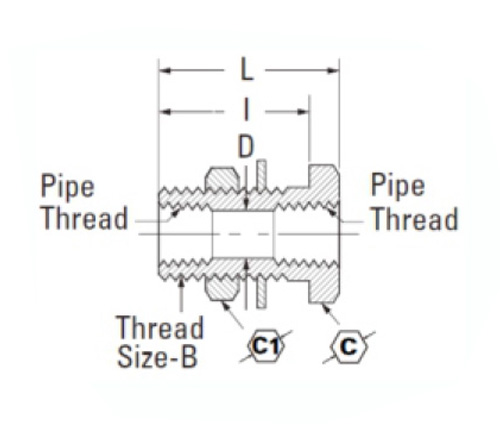

SPECIFICATIONS

PART#

Pipe size

C

C1

Size-B

L

3000-A

1/8

7/8

15/16

5/8-18

.96

3000L-A

1/8

7/8

15/16

5/8-18

1.50

3000-B

1/4

1"

1"

3/4-16

.94

3000L-B

1/4

1"

1"-1/8

3/4-16

1.50

3000-C

3/8

1"-1/8

1"-1/4

1"-14

1.31

3000-D

1/2

1"-1/4

1"-3/8

1"-1/8

1.50

L:Light

Reference Part No:

3000-A:  207×2  -  207ACBH-2  -  ACBH207-2  -  129A-A  -  392A-1&1/2  -  50004  -  55207  -  28300

3000-B:  114-44  -  1345  -  207×4  -  392C-94  -  ACBHS207-4  -  382-44S  -  129AS-B  -  55611  -  S611  -  28301

3000L-B:  392C-1&1/2  -  114B-44  -  1344  -  207-4  -  382-44L  -  50005  -  ACBH207-4  - 129A-B  - 035081  -  55661  -  28302

3000-C:   129A-C  -  392E-1&5/16  -  114-66  -  1346  -  035087  -  207×6  -  ACBH207-6  -  382-66  -  S661  -  207ACBH-6  -50006 -  28303

3000-D:  114-88  -  207×8  -  129A-D  -  1351  -  ACBH207-8  -  207ACBH-8  -  50007  -  292F-1&1/2  -  55807  -  5807  -28304

The Brass Bulkhead Coupling Pipe Fittings are constructed of brass for maximum chemical resistance, corrosion resistance, and resistance to wear. The fittings meet functional requirements of SAE J530 and SAE J531. Both forgings and extrusions are available with both male threads (M- or SPG) or female threads (F- or SPG). Our standard fittings come in either straight orientation or 90 degrees offset orientation. We can also produce custom part numbers with multiple features to meet specific customer requirements.This bulkhead coupling pipe fitting is made of brass and compatible with a variety of tubing types. It has been tested for use in applications including air lines, water lines, and cooling lines.
