1/2 Brass Forged Male Branch Tee Fittings

1/2 Brass Forged Male Branch Tee Fittings

1/2 Brass Forged Male Branch Tee Fittings 45

Typical Application:
LP and natural gas,flammable liquids,instrumentation,
refrigeration,power steering,hydraulic and pneumatic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
T1  -  145F  -  45  -  10203 TO 10221

Contact Us

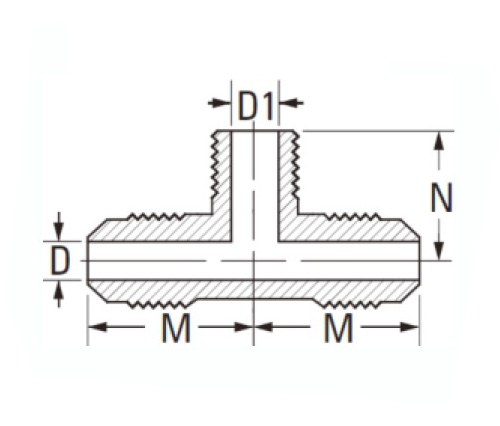

1/2 Brass Forged Male Branch Tee Fittings DETAILS

PART#

Flare O.D × Thared

D

M

N

45-3A

3/16×1/8

.126

.75

.75

45-4A

1/4×1/8

.189

.78

.78

45-4B

1/4×1/4

.189

.88

.88

45-5A

5/16×1/8

.219

.88

.80

45-5B

5/16×1/4

.219

1.00

.94

45-6B

3/8×1/4

.282

1.00

.94

45-6C

3/8×3/8

.282

1.00

1.00

45-6D

3/8×1/2

.282

1.12

1.12

45-8C

1/2×3/8

.408

1.16

1.09

45-8D

1/2×1/2

.408

1.22

1.22

45-1OD

5/8×1/2

.500

1.41

1.31

45-12D

3/4×1/2

.625

1.63

1.59

45-12E

3/4×3/4

.625

1.63

1.44

*Ref.SAE No.010425
