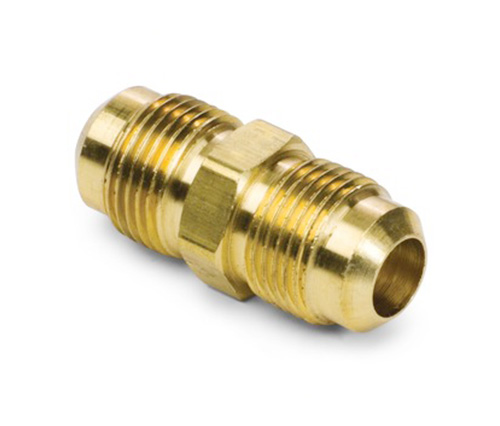

SAE 45 Flare Fittings Features 42
All brass construction
Resists vibration with use of long nut
Meets functional requirements of SAE J512 and SAE J513
Working Pressure: 550 (3/4") to 2800 (1/8") psi
Temperature Range: -65F to 250F
Compatible Tubing: Copper, brass, aluminum, welded steel hydraulic
Typical Application:
LP and natural gas,flammable liquids,instrumentation,
refrigeration,power steering,hydraulic and pneumatic systems
Conformance:
Meets specifications and standards of ASA,ASME and SAE.
Reference Part No:
42F - U2 -10104~10112

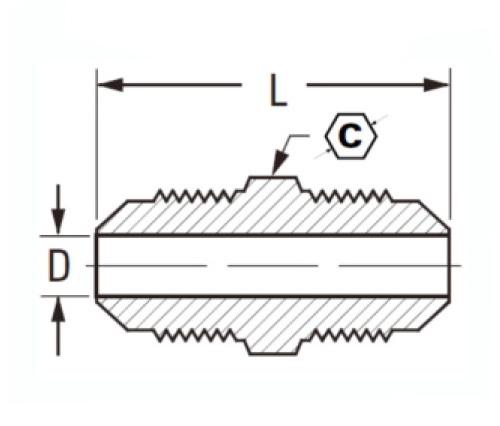

PART# |
TUBE O. D |
C |
D |
L |
42-2 |
1/8 |
7/16 |
.079 |
.47 |
42-3 |
3/16 |
1/2 |
.126 |
.58 |
42-4 |
1/4 |
9/16 |
.189 |
.69 |
42-5 |
5/16 |
5/8 |
.220 |
.79 |
42-6 |
3/8 |
3/4 |
.282 |
.88 |
42-8 |
1/2 |
7/8 |
.408 |
1.06 |
42-10 |
5/8 |
1-1/16 |
.502 |
1.19 |
42-12 |
3/4 |
1-5/16 |
.627 |
1.31 |
42-5×4 |
5/16×1/4 |
5/8 |
|
1.28 |
42-6×4 |
3/8×1/4 |
3/4 |
|
1.38 |
42-6×5 |
3/8×5/16 |
3/4 |
|
1.44 |
42-8×4 |
1/2×1/4 |
7/8 |
|
1.53 |
42-8×6 |
1/2×3/8 |
7/8 |
|
1.69 |
4210×6 |
5/8×3/8 |
1-1/16 |
|
1.88 |
42-10×8 |
5/8×1/2 |
1-1/16 |
|
1.87 |
*Ref.SAE.No.010101
we are professional China SAE 45° Flare Fittings 5/8 Tube OD Suppliers and Brass Fittings Manufacturers,we are offerSAE 45° Flare Fittings 5/8 Tube OD...
