SAE 45° Short Forged Nut 440S

SAE 45° Short Forged Nut 440S

This SAE 45° Short Forged Nut compression tube fitting is made of brass, connects to a flared tube or fitting, and is suitable for use with fuel and gas systems. It is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. This fitting connects to a flared tube or fitting and can be used with copper, brass, aluminum, or steel tubing. It is part of an assembly that resists mechanical pullout for a more secure connection, and can be assembled and reassembled without affecting the seal.

Contact Us

SAE 45° Short Forged Nut 440S DETAILS

Typical Application:
LP and natural gas,flammable liquids,instrumentation,
refrigeration,power steering,hydraulic and pneumatic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
14FS  -  41FFS  -  641-S  -  40  -  1116  -  NS4  -  10038~10045

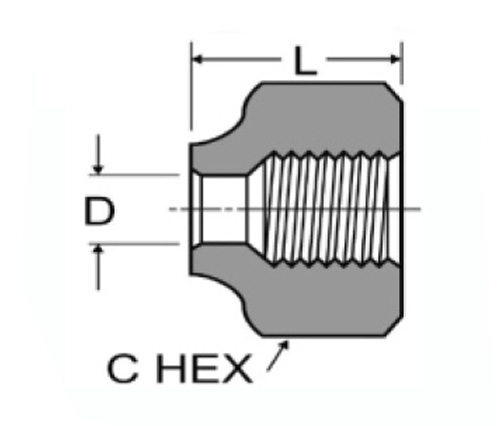

PART# TUBE O.D C D L
440S-4 1/4 5/8 .258 .60
440S-5 5/16 11/16 .320 .66
440S-6 3/8 13/16 .383 .70
440S-8 1/2 15/16 .508 .82
440S-10 5/8 1-1/16 .633 .95
440S-12 3/4 1-1/16 .758 1.16

*Ref.SAE.No.010110
