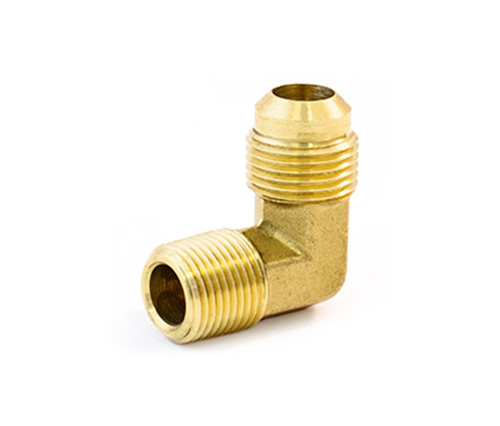

Flare Fittings Forged 90 Degree Male Elbow 49
Meets specifications and standards of ASA,ASME and SAE.
Reusability - Can be assembled and re-assembled repeatedly & Resists mechanical pull
Specification
Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Working Pressure: up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundy-weld (double flared) and 3500 psi with copper tubing, depending on size. Obviously, Temperature and type of tubing used are important factors.
Typical Application:
LP and natural gas,flammable liquids,instrumentation,
refrigeration,power steering,hydraulic and pneumatic systems
Conformance:
Meets specifications and standards of ASA,ASME and SAE.
Reference Part No:
249F - 49 - E1 - 149F - 10283 to 10309 - s49

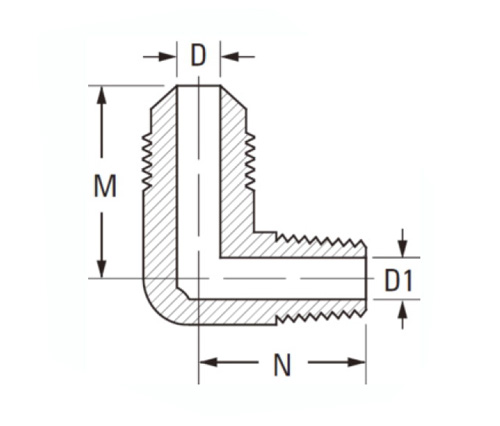

PART# |
Flare O.D × Thread |
D1 |
D |
M |
N |
49-2A |
1/8×1/8 |
.219 |
.126 |
.63 |
.73 |
49-3A |
3/16×1/8 |
.219 |
.126 |
.75 |
.75 |
49-4A |
1/4×1/8 |
.219 |
.189 |
.81 |
.76 |
49-4B |
1/4×1/4 |
.312 |
.189 |
.88 |
.94 |
49-4C |
1/4×3/8 |
.438 |
.189 |
.92 |
1.01 |
49-4D |
1/4×1/2 |
.562 |
.189 |
1.02 |
1.09 |
49-5A |
5/16×1/8 |
.219 |
.219 |
.91 |
.88 |
49-5B |
5/16×1/4 |
.312 |
.219 |
.95 |
.95 |
49-5C |
5/16×3/8 |
.438 |
.219 |
.98 |
1.01 |
49-6A |
3/8×1/8 |
.219 |
.282 |
1.00 |
.91 |
49-6B |
3/8×1/4 |
.438 |
.282 |
1.06 |
1.01 |
49-6C |
3/8×3/8 |
.438 |
.282 |
1.05 |
1.08 |
49-6D |
3/8×1/2 |
.562 |
.282 |
1.10 |
1.00 |
49-8B |
1/2×1/4 |
.312 |
.408 |
1.19 |
1.00 |
49-8C |
1/2×3/8 |
.438 |
.408 |
1.19 |
1.00 |
49-8D |
1/2×1/2 |
.562 |
.408 |
1.16 |
1.13 |
49-8E |
1/2×3/4 |
.750 |
.408 |
1.38 |
1.38 |
49-10B |
5/8×1/4 |
.312 |
.500 |
1.34 |
1.22 |
49-10C |
5/8×3/8 |
.438 |
.500 |
1.34 |
1.22 |
49-10D |
5/8×1/2 |
.562 |
.500 |
1.35 |
1.38 |
49-10E |
5/8×3/4 |
.750 |
.500 |
1.44 |
1.38 |
49-12D |
3/4×1/2 |
.562 |
.625 |
1.60 |
1.48 |
49-12E |
3/4×3/4 |
.750 |
.625 |
1.60 |
1.62 |
*DIMENSION DATA CAN CHANGE WITHOUT NOTICE
*Ref.SAE No.010202
