Power Steering Flare Plug Sae Fittings

Power Steering Flare Plug Sae Fittings 39

LP and natural gas, flammable liquids, instrumentation, refrigeration, power steering, hydraulic and pneumatic systems. Used on low, medium and high pressure lines under the most adverse conditions, compatible with copper, brass, aluminum and steel hydraulic tubing that can be flared.
Features
Construction - Two piece body and nut, straight barstock & forged fittings.
Good Vibration resistance - use long nut when greater vibration resistance is required.
Reusability - Can be assembled and re-assembled repeatedly & Resists mechanical pull

Typical Application:
LP and natural gas,flammable liquids,instrumentation,
refrigeration,power steering,hydraulic and pneumatic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

SPECIFICATIONS

Reference Part No:
58 - 57 - 439 - 639F - P2 - PF - 2229 - 10063~10069

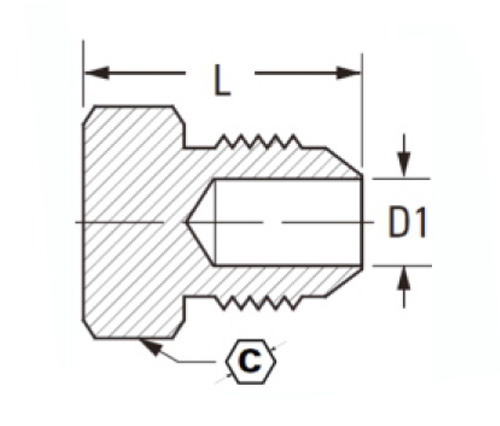

PART#	TUBE O.D	C	D1	L
39-2	1/8	7/16	.079	.47
39-3	3/16	1/2	.126	.58
39-4	1/4	9/16	.189	.69
39-5	5/16	5/8	.220	.79
39-6	3/8	3/4	.282	.88
39-8	1/2	7/8	.408	1.06
39-10	5/8	1-1/16	.502	1.19
39-12	3/4	1-5/16	.627	1.30
