50# SAE 45° Flare Forged 90°Female Elbow Brass  Flare fittings

50# SAE 45° Flare Forged 90°Female Elbow Brass Flare fittings

Product Features:
■■ All brass construction
■■ Resists vibration with use of long nut
■■ UL listing
■■ Functional requirements of SAE J512 and J513


Markets:                                Applications:
■■ Refrigeration                ■■ Refrigerant Lines
■■ Heavy Duty Truck          ■■ Propane
■■ Mobile                          ■■ Fuels
■■ Industrial                      ■■ Adapters
■■ Heating                        ■■ Natural Gas
■■ Air Conditioning

Reference Part No:
50  -  150F  -  E3  -  S150

Contact Us

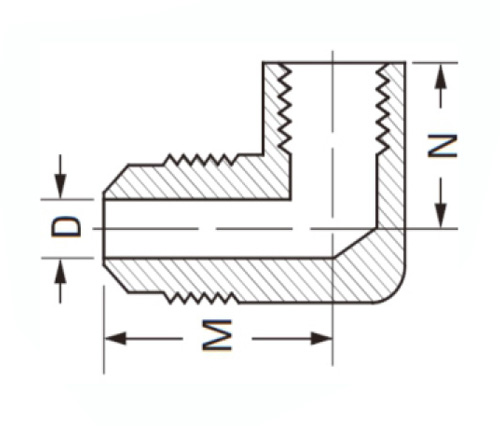

SPECIFICATIONS

PART#

Flare O.D × Thread

D

M

N

50-3A

3/16×1/8

.126

.81

.48

50-4A

1/4×1/8

.189

.90

.48

50-4B

1/4×1/4

.189

.97

.65

50-4C

1/4×3/8

.189

1.03

.60

50-4D

1/4×1/2

.189

1.08

.66

50-5A

5/16×1/8

.219

.94

.88

50-5B

5/16×1/4

.219

1.03

.60

50-5C

5/16×3/8

.219

1.05

.60

50-6A

3/8×1/8

.282

1.00

.88

50-6B

3/8×1/4

.282

1.06

.60

50-6C

3/8×3/8

.282

1.06

.60

50-6D

3/8×1/2

.282

1.23

.78

50-8B

1/2×1/4

.408

1.25

.70

50-8C

1/2×3/8

.408

1.25

.70

50-8D

1/2×1/2

.408

1.36

.80

50-8E

1/2×3/4

.408

1.51

.92

50-10D

5/8×1/2

.500

1.42

.82

50-10E

5/8×3/4

.500

1.64

.95

*DIMENSION DATA CAN CHANGE WITHOUT NOTICE

*Ref.SAE No.010203

All brass construction, the 50# SAE 45° Flare Forged 90°Female Elbow Brass  Flare fittings are UL listed and will resist vibration with use of long nut. The functional requirements of SAE J512 and J513 are met with this product making it ideal for refrigeration, heavy duty truck and mobile fuel applications. These adaptors have been optimized to be used in mobile equipment where heavy duty trucking is required.
