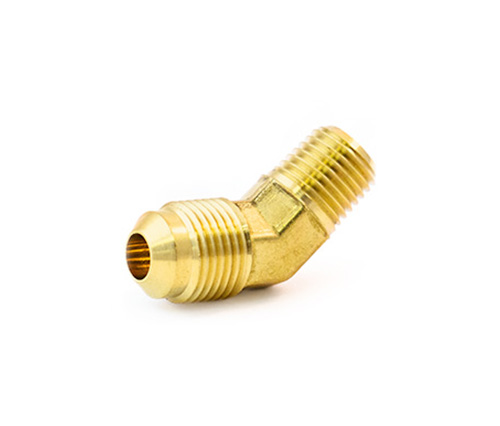

Forged 45 Degree Male Elbow Flare Fittings 54
Typical Application:
LP and natural gas,flammable liquids,instrumentation,
refrigeration,power steering,hydraulic and pneumatic systems
Conformance:
Meets specifications and standards of ASA,ASME and SAE.
Reference Part No:
E415 - 654F - 47 - 54 - 59FF - 4945 - 159F - 254 - 10448-10459
Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Working Pressure: up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundy-weld (double flared) and 3500 psi with copper tubing, depending on size. Obviously, Temperature and type of tubing used are important factors.

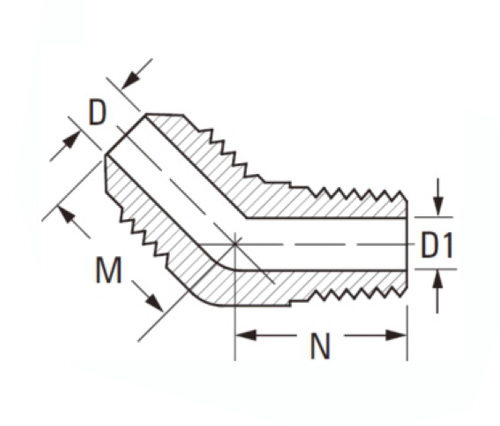

PART# |
Flare O.D × Thared |
D |
D1 |
M |
N |
54-4A |
1/4×1/8 |
.189 |
.219 |
.67 |
.64 |
54-4B |
1/4×1/4 |
.189 |
.312 |
.75 |
.86 |
54-5A |
5/16×1/8 |
.219 |
.219 |
.78 |
.64 |
54-5B |
5/16×1/4 |
.219 |
.312 |
.81 |
.86 |
54-6B |
3/8×1/4 |
.282 |
.312 |
.91 |
.86 |
54-6C |
3/8×3/8 |
.282 |
.438 |
.93 |
.94 |
54-6D |
3/8×1/2 |
.282 |
.562 |
.99 |
1.17 |
54-8C |
1/2×3/8 |
.408 |
.438 |
1.07 |
.88 |
54-8D |
1/2×1/2 |
.408 |
.562 |
1.12 |
1.17 |
54-10C |
5/8×3/8 |
.500 |
.438 |
1.13 |
.95 |
54-10D |
5/8×1/2 |
.500 |
.562 |
1.13 |
1.17 |
54-12D |
3/4×1/2 |
.625 |
.750 |
1.28 |
1.17 |
54-12E |
3/4×3/4 |
.625 |
.750 |
1.41 |
1.20 |
*Ref.SAE No.010302
