Brass Compression Sleeve Ferrules 60

This Metals sleeve compression tube fitting is made of brass, connects to a tube, and is suitable for use with fuel and gas systems. It is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. This sleeve is part of a tube compression fitting, can be used with copper, brass, aluminum, or plastic tubing and does not require a flaring tool for assembly. This sleeve compression tube fitting has an operating temperature range of -65 to +250 degrees F and is suitable for use with fuel and gas systems, plumbing, refrigeration, and vacuum applications.

Brass Compression Sleeve Ferrules 60 DETAILS

Typical Application:
Use with copper,aluminum and thermoplastic tub-ing.Not recommended
for steel tubing .Manufactured for low and medium pressure tubing
connection work where excessive vibration or tube movement is not
involved.Not recommended for application using gas eous media

Conformance:
Meets specifications and standards of ASA, ASME asn SAE

Reference Part No:
60 - 260 - s60 - 60A

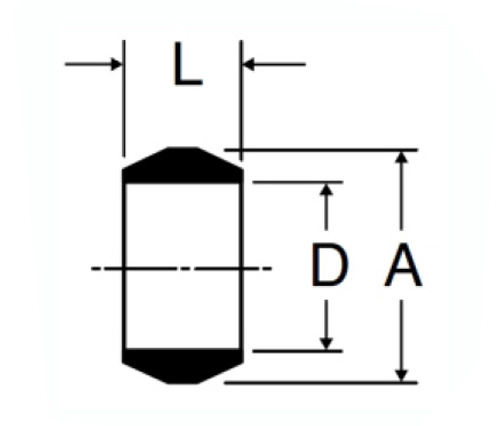

PART#	TUBE SIZE O.D	A	D	L
60-2	1/8	.187	.130	.19
60-3	3/16	.266	.192	.22
60-4	1/4	.344	.255	.25
60-5	5/16	.406	.318	.25
60-6	3/8	.469	.382	.25
60-7	7/16	.531	.444	.31
60-8	1/2	.594	.507	.38
60-10	5/8	.719	.632	.38
60-12	3/4	.875	.758	.44
