Union Straight Compression Fittings

Union Straight Compression Fittings 62

Typical Application:
Use with copper,aluminum and thermoplastic tub-ing.Not recommended
for steel tubing .Manufactured for low and medium pressure tubing
connection work where excessive vibration or tube movement is not
involved.Not recommended for application using gas eous media

Conformance:
Meets specifications and standards of ASA, ASME asn SAE

Reference Part No:
62 - 262 - s62 - 62A

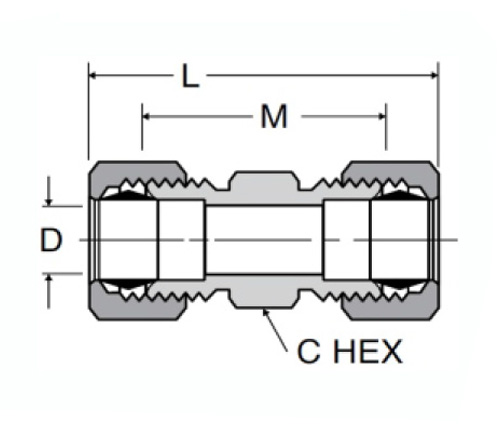

Union Straight Compression Fittings DETAILS

PART#	TUBE SIZE O.D	C	M	D
62-2	1/8	5/16	.64	.94
62-3	3/16	3/8	.72	.125
62-4	1/4	7/16	.79	.188
62-5	5/16	1/2	.85	.250
62-6	3/8	9/16	.97	.312
62-7	7/16	5/8	1.02	.312
62-8	1/2	11/16	1.08	.406
62-10	5/8	13/16	1.23	.500
62-12	3/4	15/16	1.41	.562
62-4-3	1/4×3/16	1"	.78	.125
62-5-4	5/16×1/4	7/16	.81	.188
62-6-4	3/8×1/4	1/2	.90	.125
62-6-5	3/8×5/16	9/16	.94	.188
62-8-6	1/2×3/8	11/16	1.03	.312
62-10-6	5/8×3/8	13/16	1.03	.312
62-10-8	5/8×1/2	13/16	1.10	.406
