1611# Long Flare Nut compression fittings

1611# Long Flare Nut compression fittings

Applications:                          Markets:
■■ Air lines                            ■■ Industrial
■■ Lubrication Lines                ■■ Packaging
■■ Cooling lines                      ■■ Pneumatic
■■ Industry                            ■■ Printing
■■ Machinery
■■ Compressors
■■ Fluid transfer

Product Features:
■■ Meets functional requirements of SAE J-512
■■ UL Listed for flammable liquid
■■ Brass or acetal sleeve available
■■ No tube preparation
■■ Forged and extruded shapes

Reference Part No:
161  -  261  -  s61L  -  1611

Contact Us

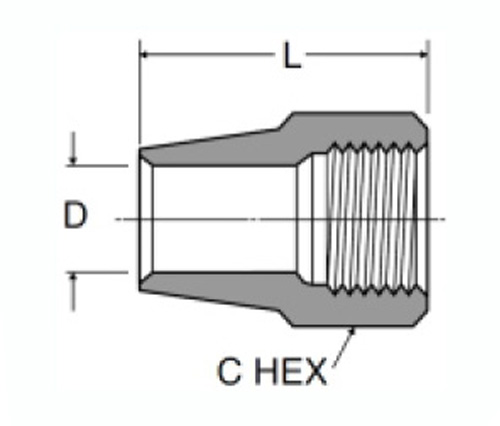

SPECIFICATIONS

PART#

TUBE SIZE O.D

C

D

L

1611-3

3/16

7/16

.192

.62

1611-4

1/4

1/2

.255

.75

1611-5

5/16

9/16

.318

.84

1611-6

3/8

5/8

.382

.88

1611-8

1/2

13/16

.507

1.06

1611-10

5/8

15/16

.632

1.08

1611-12

3/4

1-3/16

.758

1.38

*Ref.SAE No.060111

The 1611 is a compression fitting designed for use in flammable liquid service. The 1611 meets functional requirements of SAE J-512, and is UL listed for flammable liquid. This fitting has been designed with a brass or acetal sleeve, enabling no tube preparation. Compression fittings are forged and extruded for added strength.These fittings are also UL Listed for flammable liquids, with brass sleeves available for higher temperatures or applications where chlorinated solvents may be present. The extruded section of the tube fitting is pressure tested prior to threading, ensuring reliable seals every time. Unthreading is permitted without breaking through the tube wall, even if stresses have built up over time.
