64#  Brass Union Tee Compression Fittings

64# Brass Union Tee Compression Fittings

Brass Union Tee Compression Fittings  64#

Applications:                          Markets:
■■ Air lines                            ■■ Industrial
■■ Lubrication Lines                ■■ Packaging
■■ Cooling lines                      ■■ Pneumatic
■■ Industry                            ■■ Printing
■■ Machinery
■■ Compressors
■■ Fluid transfer

Product Features:
■■ Meets functional requirements of SAE J-512
■■ UL Listed for flammable liquid
■■ Brass or acetal sleeve available
■■ No tube preparation
■■ Forged and extruded shapes

Reference Part No:
64  -  164C  -  S64  -  64A

Contact Us

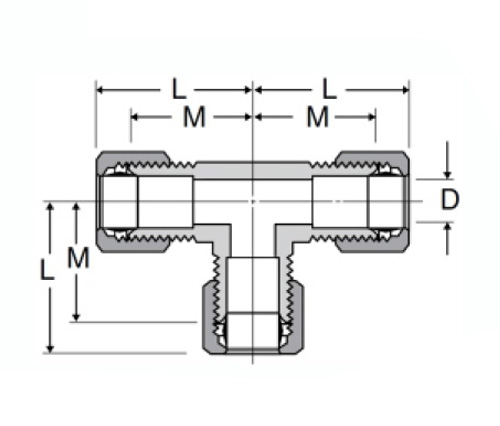

SPECIFICATIONS

PART#

TUBE SIZE O.D

M

M

D

64-2

1/8

/

.53

.94

64-3

3/16

/

.59

.125

64-4

1/4

/

.627

.188

64-5

5/16

/

.65

.250

64-6

3/8

/

.73

.312

64-8

1/2

/

.94

.406

64-10

5/8

/

1.06

.500

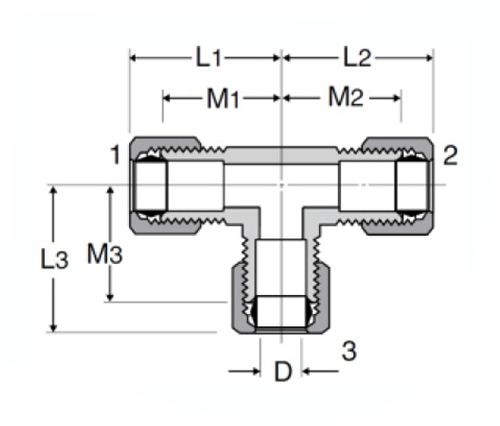

PART#

TUBE SIZE

M1

M2

M3

64-4-4-6

1/4x1/4x3/8

.69

.69

.75

64-4-6-4

1/4x3/8x1/4

.69

.75

.69

64-6-6-4

3/8x3/8x1/4

.75

.75

.69

64-8-8-6

1/2x1/2x3/8

.94

.94

.81

64-10-10-8

5/8x5/8x1/2

1.06

1.06

1.06



*Ref.SAE No.060401 BA

Our 64 brass union tee compressive fittings are UL Listed for flammable liquid and meet the functional requirements of SAE J-512. Available in forged or extruded shapes, they are available with both machined and socketed threads and in either a brass or acetal sleeve. Available with either brass or acetal sleeves, all components are designed for easy installation, so your installation goes smoothly.
