65# 90° Male Union Elbow Compression Fittings

65# 90° Male Union Elbow Compression Fittings

Applications:                          Markets:
■■ Air lines                            ■■ Industrial
■■ Lubrication Lines                ■■ Packaging
■■ Cooling lines                      ■■ Pneumatic
■■ Industry                            ■■ Printing
■■ Machinery
■■ Compressors
■■ Fluid transfer

Product Features:
■■ Meets functional requirements of SAE J-512
■■ UL Listed for flammable liquid
■■ Brass or acetal sleeve available
■■ No tube preparation
■■ Forged and extruded shapes

Reference Part No:
65  -  265  -  65A -  s65

Contact Us

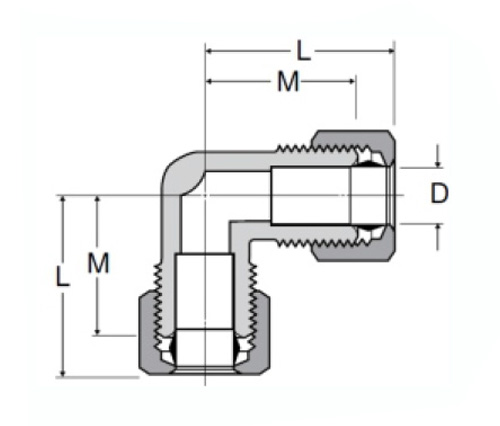

SPECIFICATIONS

PRT# TUBE SIZE O.D M D
65-3 3/16 .61 .125
65-4 1/4 .66 .188
65-5 5/16 .69 .250
65-6 3/8 .72 .312
65-8 1/2 .94 .406
65-10 5/8 1.06 .500
65-12 3/4 1.19 .562
65-6-4 3/8x1/4 .75/.69 .125
65-8-6 1/2x3/8 .94/.88 .312

Up to 6 times lighter than forged fittings, the 65 series features a lightweight and corrosion-resistant acetal or brass body and a forged brass center pin. This fitting allows you to adapt the end of a tube to a 90 degree angle. This fitting is available in multiple materials and finishes including brass, stainless steel, and acetal. Each fitting is stamped with a part number, ensuring easy identification at all points in the supply chain. This elbow subassembly is typically used in fuel systems where copper tube to copper tube connections are recommended. The number of threads required to make the connection can vary based on the pipe material, wall thickness and thread pitch.
