69TF  Transmission Fittings Male Elbow

69TF Transmission Fittings Male Elbow

Product Features:
■■ Brass Body
■■ D.O.T. Approved with Staked in Tube Support
■■ 3/16” & 5/32” Tube sizes
■■ Slotted Sleeve
■■ Nickel Plated Versions Available for Bio-diesel

Markets:
■■ Heavy Duty Truck

Applications:
■■ Air Shift Transmissions
■■ Seat Controls
■■ Dash Controls
Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing
Reference Part No:
Contact Us

SPECIFICATIONS

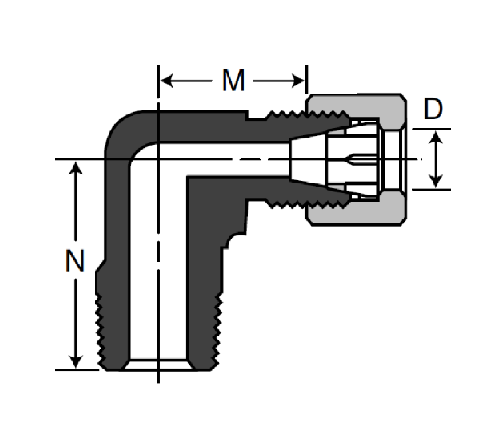

PART# Tube Size×Thread M N D
69TF-2-2 1/8×1/8 .66 .61 .133
69TF-5/32-2 5/32×1/8 .66 .61 .163

MND69TF MALE ELBOW TUBE FITTING is manufactured with a high quality zinc plated finish to ensure the integrity of the product and reduce corrosion. This fitting has a male half and female half and is available in many sizes to meet your needs.
The MND69TF tubing fitting is a male fitting that consists of a female thread inlet and an elbow. The fitting allows you to connect multiple pieces of tubing together.
The 69TF Series is a family of transition fittings for use on temporary service lines for the distribution of natural gas. This series is designed with a reduced shoulder to allow for easy coupling to rigid pipe and flexible hose.
