62TF Transmission Fittings Union

Product Features:
■■ Brass Body
■■ D.O.T. Approved with Staked in Tube Support
■■ 3/16” & 5/32” Tube sizes
■■ Slotted Sleeve
■■ Nickel Plated Versions Available for Bio-diesel

Markets:
■■ Heavy Duty Truck

Applications:
■■ Air Shift Transmissions
■■ Seat Controls
■■ Dash Controls

Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing

Reference Part No:

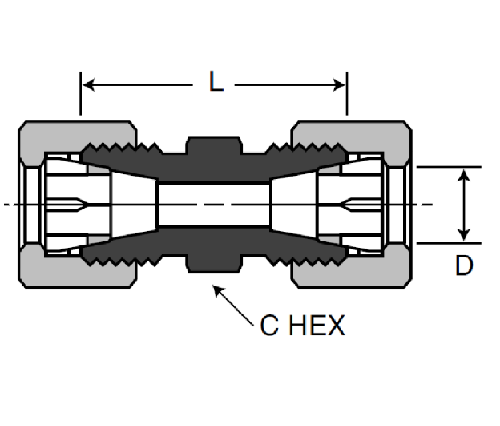

SPECIFICATIONS

PART#	TUBE SIZE	C	D	L
62TF-2	1/8	5/16	.133	.68
62TF-5/32	5/32	5/16	.163	.68

Our 62TF fittings are manufactured with a brass body and a D.O.T. Approved 3/16” & 5/32” tube size. This fitting is rated for use in air shift transmissions, seat controls, and dash controls in heavy duty trucks

The 62TF TransTec® Brass Union (S) is a 1-piece design, threaded on both ends to accept 1/2” O.D. tubing. It fits tubing sizes 1/16”, 3/16” and 5/32” in diameter. Standard features include a slotted sleeve, a nickel plated version that can be used with Bio-diesel and Staked Tubing Support Nut eliminating the need for additional nuts or washers.

This is a 3/16" tube fitting with a slotted sleeve and a nickel plated version of this product is also available for bio-diesel applications.
