60TF Transmission Fittings Sleeve

Product Features:
■■ Brass Body
■■ D.O.T. Approved with Staked in Tube Support
■■ 3/16” & 5/32” Tube sizes
■■ Slotted Sleeve
■■ Nickel Plated Versions Available for Bio-diesel

Markets:
■■ Heavy Duty Truck

Applications:
■■ Air Shift Transmissions
■■ Seat Controls
■■ Dash Controls

Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing

Reference Part No:

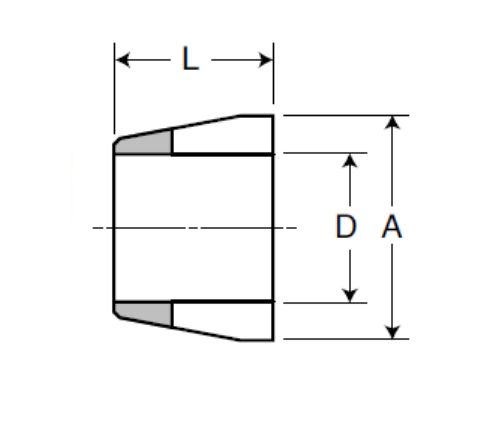

SPECIFICATIONS

PART#	TUBE SIZE	A	D	L
60TF-2	1/8	.235	.130	.17
60TF-5/32	5/32	.251	.165	.18

The 61 Series sleeve provides the ultimate solution when a “non-rotating” assembly is required. The brass body with staked in tube support and slotted sleeves provide superior strength, while the nickel plating provides maximum protection against corrosion.

Our 60TF transmission fitting sleeves provide a positive sealing system for your hoses and flexible lines in air shift transmissions and heavier duty truck applications. Our 60TF provides an accurate, repeatable fit by using 1/4″ & 3/8″ ID tube sizes and 1/4″ & 5/16″ OD tube sizes.

One size of this product works for all sized tubing, but we also offer two other sizes in order to fit your needs. The 3/16” tube size is the standard when it comes to industrial equipment. This size will work well with nearly any situation, but if you need a larger or smaller, we have both in stock.
