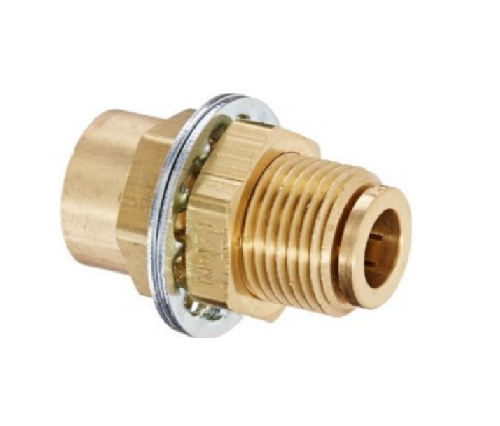

Brass Air Brake Tube Female Bulkhead Union 1586
air brake tubing bulkhead union fitting is suitable for connecting air brake tubes to male NPT-threaded pipes and fittings through a barrier in air brake systems. It has 3/8" female National Pipe Taper (NPT) threads on one end, a Department of Transportation (DOT) push-in tube receptacle on the other for use with 3/8" outside diameter (OD) tubes, and 3/4-16 outer Society of Automotive Engineers (SAE) threads for mounting through a container wall or other barrier. The fitting is made of CA360 brass for strength and resistance to corrosion and has an operating temperature range of -40 to +200 degrees F (-40 to +93 degrees C).
This air brake tubing bulkhead union fitting is suitable for use in air brake systems for trucks, buses, trailers, railroad trains, and other large vehicles where temperatures do not exceed 200 degrees F and battery acid cannot drip on tubing.

Contact Us

Air Brake Tube Female Bulkhead Union DETAILS

Typical Application:
Air systems

Conformance:
Meets  D.O.T FMVSS 571.106 ,CMVSS106 and SAE J1131 Air Brake system Requirements

Reference Part No:
AQ86DOT  -  66PMT BH -  1873  -  DQ86DOT  -  1568DOT

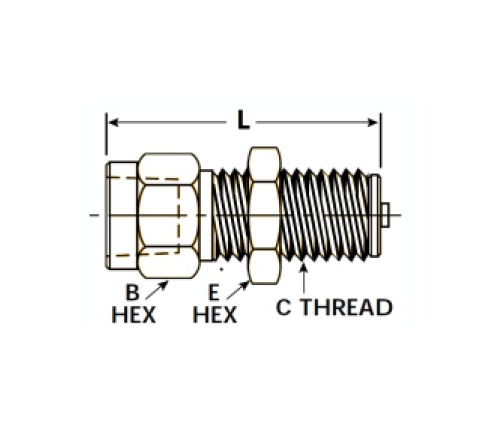

PART#

TUBE O.D ×MALE NPTF

C

B

E

L

1586-DOT-4A

1/4×1/8

1/2-20

11/16

11/16

1.30

1586-DOT-4B

1/4×1/4

1/2-20

3/4

11/16

1.56

1586-DOT-6B

3/8×1/4

5/8-18

3/4

13/16

1.87

1586-DOT-6C

3/8×3/8

5/8-18

7/8

13/16

1.93
