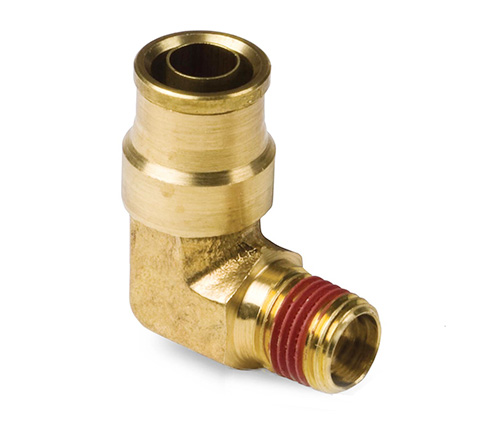

1569 Push in 90 Degree Male Elbow

1569 Push in 90 Degree Male Elbow

Product Features:
■■ Brass Collet
■■ Buna N O-ring
■■ Stainless Steel Tube Support
■■ Meets D.O.T. FMVSS571.106
■■ Meets SAE J2494 & SAE J2494-3

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines

Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing

Reference Part No:
AQ69DOT  -  169PMT  -  1869  -  DQ69DOT  -  1569DOT

Contact Us

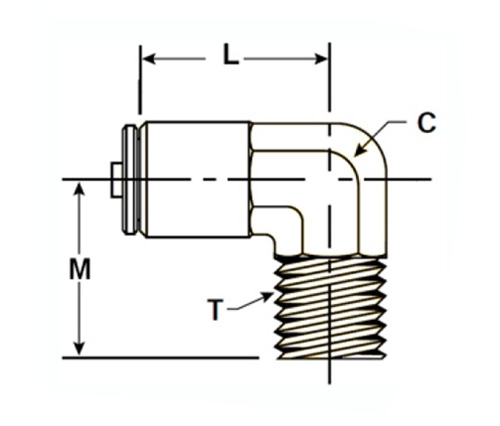

SPECIFICATIONS

PART#

TUBE O.D× MALE NPTF

C

M

L

1569-DOT-532A

5/32×1/8

5/16

.69

.78

1569-DOT-4A

1/4×1/8

3/8

.75

.88

1569-DOT-4B

1/4×1/4

3/8

.96

.89

1569-DOT-4C

1/4×3/8

1/2

.98

1.00

1569-DOT-6A

3/8×1/8

1/2

.80

.98

1569-DOT-6B

3/8×1/4

1/2

.94

.98

1569-DOT-6C

3/8×3/8

1/2

.98

.98

1569-DOT-6D

3/8×1/2

5/8

1.19

1.07

1569-DOT-8B

1/2×1/4

5/8

1.05

1.15

1569-DOT-8C

1/2×3/8

5/8

1.05

1.15

1569-DOT-8D

1/2×1/2

5/8

1.20

1.16

1569-DOT-10C

5/8×3/8

3/4

1.25

1.23

1569-DOT-10D

5/8×1/2

11/16

1.28

1.23

1569-DOT-12D

3/4×1/2

15/16

1.36

1.32

1569-DOT-12E

3/4×3/4

15/16

1.36

1.32



This 90-degree push in male elbow is made from brass with a Buna N O-ring, stainless steel tube support and meets DOT FMVSS571.106, SAE J2494 & SAE J2494-3. It is compatible with SAE J844 Type A & B nylon tubing. This push in 90 degree elbow is designed specifically to fit the needs of today's heavy duty trucks, trailers, mobile applications and more. The Buna N O-Ring design resists abrasion and high temperatures and offers superior resistance to oil and fluids. The brass collet allows for manual assembly or can be coupled with our AQ69DOT Push-In Coupler Assembly Tool (sold separately). This coupling meets DOT FMVSS571.106 requirements and conforms to the International Standard Organization testing methods for plastic insulated hydraulic systems: R6598 & R6599
