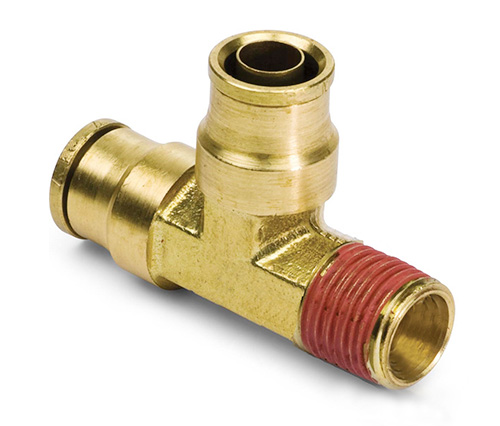

1571 D.O.T Male Run Tee Pipe

1571 D.O.T Male Run Tee Pipe

Product Features:
■■ Brass Collet
■■ Buna N O-ring
■■ Stainless Steel Tube Support
■■ Meets D.O.T. FMVSS571.106
■■ Meets SAE J2494 & SAE J2494-3

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines

Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing

Reference Part No:
AQ71DOT  -  171PMT  -  1871  -  DQ71DOT  -  1571DOT

Contact Us

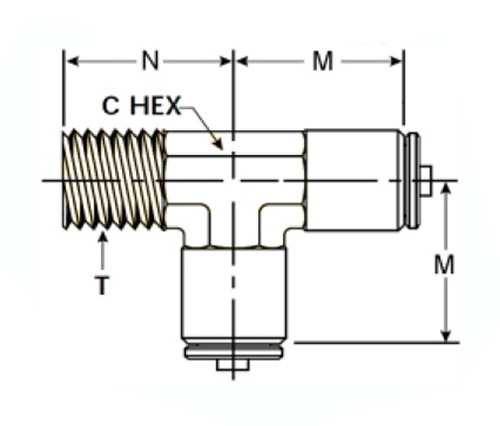

SPECIFICATIONS

PART# TUBE O.D ×MALE NPTF C M N
1571-DOT-4A 1/4×1/8 3/8 .89 .89
1571-DOT-4B 1/4×1/4 3/8 .93 .91
1571-DOT-6A 3/8×1/8 1/2 .82 .98
1571-DOT-6B 3/8×1/4 1/2 .98 .98
1571-DOT-6C 3/8×3/8 1/2 .98 .98
1571-DOT-8C 1/2×3/8 5/8 1.15 1.32

The 1571-DOT Series of DoT Connectors are manufactured from SAE J2494 and SAE J2494-3 approved materials. They meet all applicable requirements of FMVSS571.106, D.O.T., Mn/DOT, CSA and for use on non-regulated items such as air lines, mobile applications, truck trailers, etc. The DOT Male Run Tee (PN1571) is designed to meet SAE J2494 specifications and is ideal for automotive, heavy truck and industrial applications. This fitting has a 1/2" FNPT x 3/8"M air pressure fitting on one end of the tee and a 1/8" MNPT x 1/4" FNPT on the other end. Male fitting with compression rubber O-ring, inline and angle tube configurations available. Flanged Male Shutoff Valve Fitting 50psi PSI Pressure Rating 1/2″-8″ Inline Tube - (2) Nipple Connections 316 | 304 Stainless Steel
