Five-way Pneumatics High Flow Manifold

Five-way Pneumatics High Flow Manifold

Five-way Pneumatics High Flow Manifold 1555MP
Five-way manifold for distributing pneumatic power to multiple locations from a single source
brass resistance to corrosion
1/2" female NPT inlet port and five 1/4" female NPT outlet ports
Maximum pressure rating of 300 psi
Temperature range of -40 to +250 degrees F

Typical Application:
Air systems

Conformance:
Meets  D.O.T FMVSS 571.106 ,CMVSS106 and SAE J1131 Air Brake system Requirements

Contact Us

SPECIFICATIONS

Reference Part No:
255MP

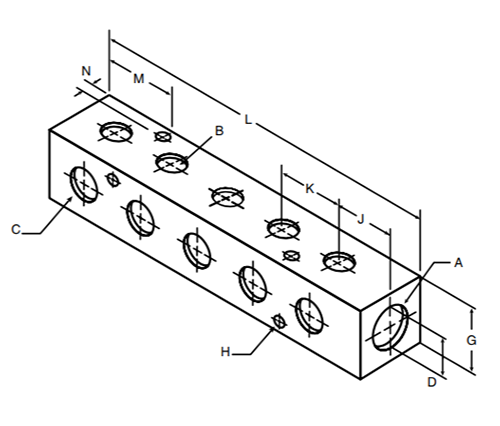

PART# PIPE THREAD A PIPE THREAD B PIPE THREAD C G MOUNTING HOLE DIA H J K L M N D
1555MP 3/8 1/8 1/4 1.25 .22 .88 1.13 6.25 1.45 .25 .25

Five-way Pneumatics High Flow Manifold 1555MP is a brass five way manifold for distributing pneumatic power to multiple locations from a single source. The 1/2" female NPT inlet port is contained within the body and feeds into five 1/4" female NPT outlet ports. A maximum pressure rating of 300 psi ensures that this manifold will last where other models may fail. This manifold is ideal for use with air systems and Conformance:Meets  D.O.T FMVSS 571.106 ,CMVSS106 and SAE J1131 Air Brake system Requirements.
