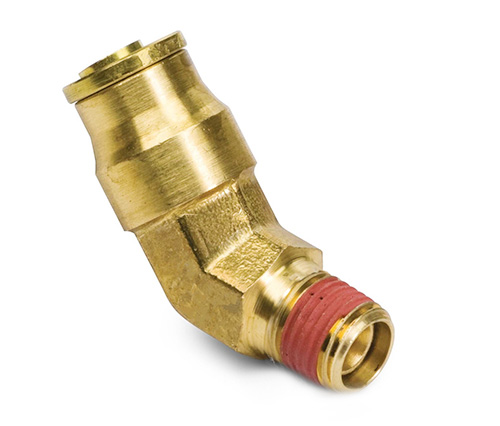

1554 Push-In Male 45° Elbow Pipe

Product Features:
■■ Brass Collet
■■ Buna N O-ring
■■ Stainless Steel Tube Support
■■ Meets D.O.T. FMVSS571.106
■■ Meets SAE J2494 & SAE J2494-3

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines

Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing

Reference Part No:
AQ54DOT - 179PMT - 1880 - DQ54DOT - 1554DOT

SPECIFICATIONS

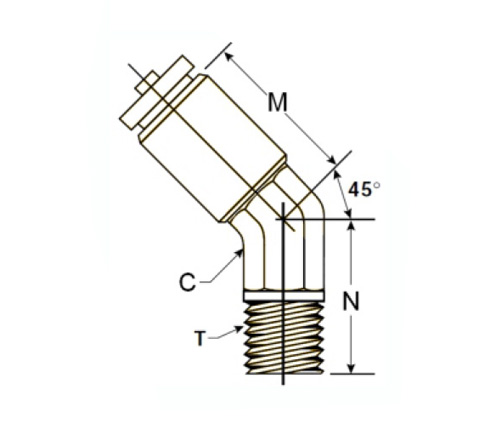

PART#	TUBE O.D×MALE NPTF	C	M	N
1554-DOT-4A	1/4×1/8	3/8	.89	.83
1554-DOT-4B	1/4×1/4	3/8	.89	.91
1554-DOT-6A	3/8×1/8	1/2	.97	.75
1554-DOT-6B	3/8×1/4	1/2	.97	.95
1554-DOT-6C	3/8×3/8	1/2	.97	.97
1554-DOT-6D	3/8×1/2	5/8	1.04	1.14
1554-DOT-8B	1/2×1/4	5/8	1.09	.97
1554-DOT-8C	1/2×3/8	5/8	1.10	1.05
1554-DOT-8D	1/2×1/2	5/8	1.11	1.14
1554-DOT-10C	5/8×3/8	11/16	1.28	1.12
1554-DOT-10D	5/8×1/2	11/16	1.31	1.25

These high pressure push-to-connect fittings are designed to be used with SAE J844 Type A & B nylon tubing. Features include buna N O-ring, stainless steel tube support, brass collet and meeting DOT FMVSS571.106 and SAE J2494 for your safety and compliance needs. Push-In Fittings are a single piece, fully O-ring pre-assembled unit for ease of installation. The double swaging process is accomplished by cold drawn steel tubing, which allows for slightly higher bursting pressures. These Push In fittings are available in several sizes to accommodate the needs of virtually any application. Push-in 45° elbow is used to convert horizontal tubing to vertical in a single unit. Available in several sizes and configurations to meet your specific needs.
