1582 D.O.T Push In  Bulkhead Union

1582 D.O.T Push In Bulkhead Union

Product Features:
■■ Brass Collet
■■ Buna N O-ring
■■ Stainless Steel Tube Support
■■ Meets D.O.T. FMVSS571.106
■■ Meets SAE J2494 & SAE J2494-3

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines

Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing

Reference Part No:
AQ82DOT  -  62PMTBH  -  1874  -  DQ82DOT  -  1582DOT

Contact Us

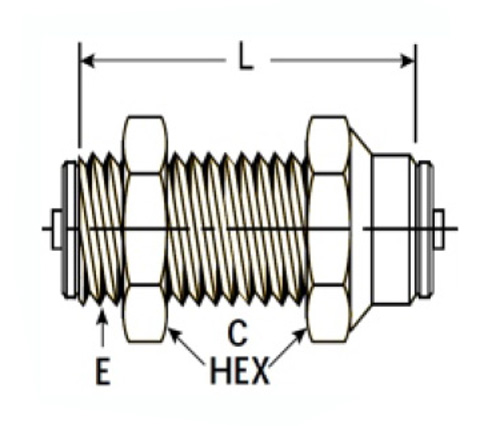

SPECIFICATIONS

PART# TUBE O.D C E L
1582-DOT-4 1/4 11/16 1/2-20 1.69
1582-DOT-6 3/8 15/16 5/8-18 1.70
1582-DOT-8 1/2 15/16 3/4-16 1.88
1582-DOT-10 5/8 1-1/8 15/16-16 1.88

The DOt push in bulkhead union provides a quick, secure and reliable way to connect hoses to air fittings. The PVC plastic body is durable and lighter than brass, yet strong enough for all industrial applications. The 1/8-27 screw fits all standard U.S. quick disconnects and torque couplings for quick assembly of service lines and equipment on vehicles with air brakes, primary & secondary air lines, tires or other pneumatic devices.The Buna N O-ring provides an excellent seal as well as great life expectancy and reliability. The brass tube support provides strength to the union, while allowing you to attach multiple pieces together if needed. Meets FMVSS571.The DOT push-in valve has a stainless steel tube support to prevent bending and leaking, a brass collet that provides an internal seal against corrosion and an O-ring to prevent leaks.
