1564 D.O.T Push in Fitting Tee

1564 D.O.T Push in Fitting Tee

Product Features:
■■ Brass Collet
■■ Buna N O-ring
■■ Stainless Steel Tube Support
■■ Meets D.O.T. FMVSS571.106
■■ Meets SAE J2494 & SAE J2494-3

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines

Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing

Reference Part No:
AQ64DOT  -  164PMT  -  1864  -  DQ64DOT  -  1564-DOT

Contact Us

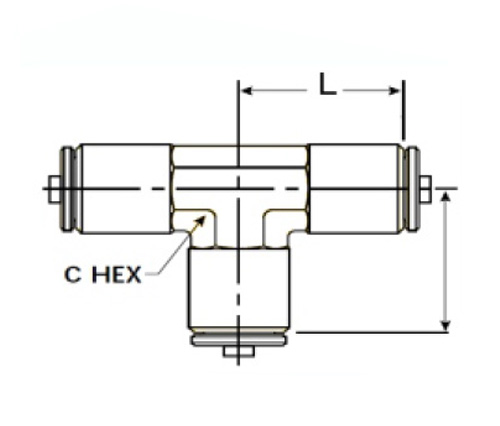

SPECIFICATIONS

PART# TUBE SIZE O.D C L
1564-DOT-4 1/4 3/8 .95
1564-DOT-6 3/8 1/2 .96
1564-DOT-8 1/2 5/8 1.16
1564-DOT-10 5/8 11/16 1.19
1564-DOT-12 3/4 15/16 1.40

AQ64DOT is a semi-flexible push on fitting tee. It features an O-ring, a Buna N, which is designed for high pressure, low temperature applications. The double tube support prevents pulling out of the tube during high pressure applications. The material used for this product is SS304 stainless steel and brass with Buna N O-ring that meets SAE J2494 & SAE J2494-3 requirements. This product is compatible with both SAE J844 Type A & B nylon tubing.The 1564 DOT push-in fitting is constructed of brass, features an o-ring seal, a stainless steel tube support, and meets FMVSS571.106, SAE J2494 & SAE J2494-3. It can be used in heavy duty trucks, trailers and mobile equipment to transport air lines.This fitting makes it easy to separate your air lines from the brake system without the need of cutting any tubing, thus increasing safety when servicing your brakes.
