1570 D.O.T 90° Elbow Adapter

1570 D.O.T 90° Elbow Adapter

Product Features:
■■ Brass Collet
■■ Buna N O-ring
■■ Stainless Steel Tube Support
■■ Meets D.O.T. FMVSS571.106
■■ Meets SAE J2494 & SAE J2494-3

Markets:
■■ Heavy Duty Truck
■■ Trailer
■■ Mobile

Applications:
■■ Air Brakes
■■ Air Tanks
■■ Air Ride
■■ Sliders
■■ Tire Inflation
■■ Primary & SecondaryAir Lines

Compatible Tubing:
■■ SAE J844 Type A & B nylon tubing

Reference Part No:
AQ70DOT  -  170PMT  -  1870  -  DQ70DOT  -  1570DOT

Contact Us

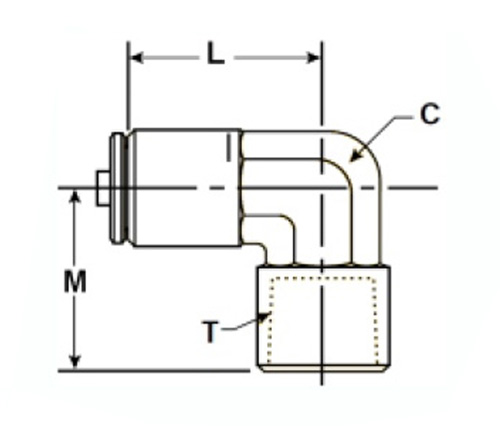

SPECIFICATIONS

PART#

TUBE O.D× FEMLAE NPTF

C

M

L

1570-DOT-4A

1/4×1/8

3/8

.82

.92

1570-DOT-4B

1/4×1/4

1/2

.94

.102

1570-DOT-4C

1/4×3/8

5/8

.98

1.11

1570-DOT-6B

3/8×1/4

1/2

.94

.96

1570-DOT-6C

3/8×3/8

5/8

.91

.98

1570-DOT-8D

1/2×1/2

5/8

1.21

1.14

The SAE J1570 DOT 90° Elbow Adapter features a brass collet and Buna N type O-ring for leak-free attachment and easy installation, while the stainless steel tube support ensures durability. It meets D.O.T. requirements, meeting FMVSS571.106, SAE J2494 & SAE J2494-3 specifications for use with SAE J844 Type A & B nylon tubing in heavy duty truck, trailer and mobile applications.This 90° brass elbow adapter is a solid connection between two pieces of 3/16 SAE air brake tubing. The low profile design of this adapter allows it to fit in tight spaces, while still being strong enough to meet DOT specification. This brass elbow is designed to be fitted on the end of your air lines, allowing them to turn corners in tight places. It's made from corrosion resistant materials and contains a stainless steel support tube that keeps it sturdy.
