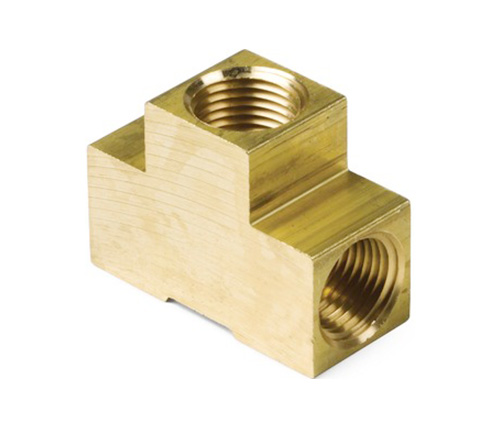

3700# Brass Fittings Union Tee Brass Pipe Fittings

3700# Brass Fittings Union Tee Brass Pipe Fittings

Product Features:                                                   Markets:
■■ All brass construction                                            ■■ Industrial
■■ Meets functional requirements of                       ■■ Construction
SAE J530 and SAE J531                                              ■■ Heavy duty truck
■■ Threads made to dryseal standards                    ■■ Mobile
■■ Both forgings and extrusions available              ■■ Factory/process automation

Applications:                                                         Compatible Tubing:
■■ Air Lines                                                                    ■■ Copper
■■ Water Line                                                                ■■ Brass
■■ Cooling Lines                                                           ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
2203P  - 3700 -  322 -  203  -  311  -  101A  -  28024~28028  -  101A

Contact Us

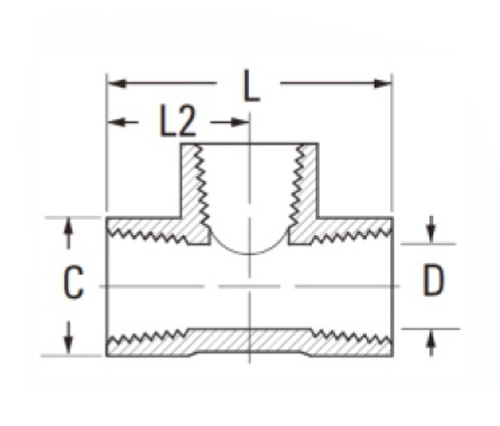

SPECIFICATIONS

PART#

Thread size

C

D

L2

L

3700-A

1/8

9/16

.339

.55

1.10

3700-B

1/4

11/16

.438

.78

1.56

3700-C

3/8

13/16

.516

.84

1.68

3700-D

1/2

1"

.703

1.09

2.18

3700-E

3/4

1"-1/4

.906

1.38

2.31

*Ref.SAE.No.130438

This union tee fitting is constructed 100% of brass and meets the functional requirements of SAE J530, SAE J531, SAE J519 and SAE J529. It is for use in mobile equipment and construction applications. The unions allow easy assembly and disassembly during cleaning or repairs. Threaded connections are made to dryseal standards to prevent leakage.When it comes to the design and construction of your piping system, the 3700# Brass Fittings Union Tee is the answer. It will bring a professional, durable look to your project while expanding your options when it comes to installation.This tee will fit up to 3/4" tubing. The body and caps are made from brass, making this fitting resistant to corrosion and rusting. This product has a pressure rating of 1000 psi, and is backed by our lifetime guarantee.
