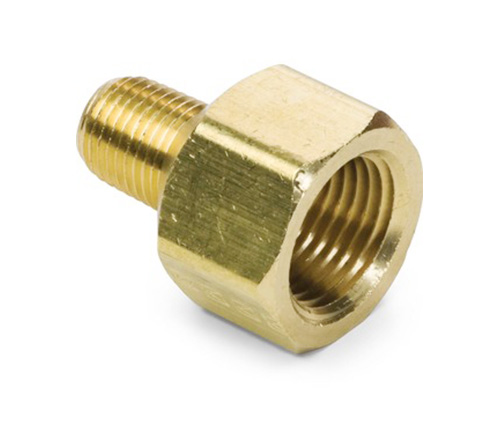

3200# Extender Adapter Fittings

3200# Extender Adapter Fittings

Product Features:                                                   Markets:
■■ All brass construction                                            ■■ Industrial
■■ Meets functional requirements of                       ■■ Construction
SAE J530 and SAE J531                                              ■■ Heavy duty truck
■■ Threads made to dryseal standards                    ■■ Mobile
■■ Both forgings and extrusions available              ■■ Factory/process automation

Applications:                                                         Compatible Tubing:
■■ Air Lines                                                                    ■■ Copper
■■ Water Line                                                                ■■ Brass
■■ Cooling Lines                                                           ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
375  -  222p  -  3200  -  R1  -  120AH  -  120B

Contact Us

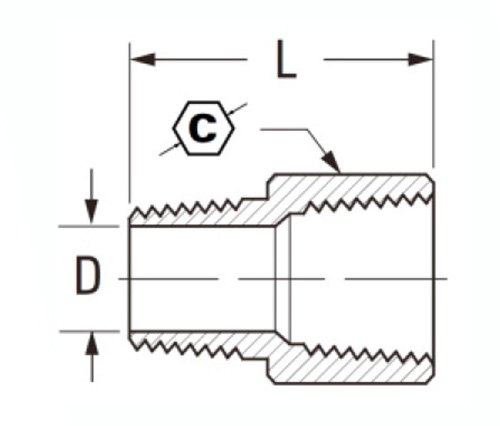

SPECIFICATIONS

PART#

Thread size

C

F

L

3200-AA

F1/8×M1/8

1/2

.219

.88

3200L-AA

F1/8×M1/8

9/16

.219

.83

3200-BA

F1/4×M1/8

3/4

.219

1.06

3200L-BA

F1/4×M1/8

11/16

.219

.94

3200LL-BA

F1/4×M1/8

5/8

.219

.94

3200-BB

F1/4×M1/4

3/4

.312

1.25

3200L-BB

F1/4×M1/4

11/16

.312

1.00

3200LL-BB

F1/4×M1/4

5/8

.312

1.00

3200-CA

F3/8×M1/8

7/8

.219

1.00

3200-CB

F3/8×M1/4

7/8

.312

1.25

3200L-CB

F3/8×M1/4

13/16

.312

1.12

3200-CC

F3/8×M3/8

7/8

.438

1.24

3200L-CC

F3/8×M3/8

13/16

.438

1.12

3200-DB

F1/2×M1/4

1-1/16

.312

1.46

3200-DC

F1/2×M3/8

1-1/16

.438

1.47

3200L-DC

F1/2×M3/8

15/16

.438

1.19

3200-DD

F1/2×M1/2

1-1/16

.562

1.66

3200L-DD

F1/2×M1/2

15/16

.562

1.31

3200-EC

F3/4×M3/8

1-1/4

.438

1.59

3200-ED

F3/4×M1/2

1-1/4

.563

1.69

3200-EE

F3/4×M3/4

1-1/4

.750

1.69

*L:Light

*REF.SAE NO.130139

Adapter fittings are made of both forgings and extrusions and compatible with a wide range of tubing, including air lines, water lines, etc. SAE J530 and SAE J531 threads meet functional requirements of heavy duty truck markets. Compatible with both copper and brass tubing, this product can handle a pressure range up to 1000 psi. All fittings are made in the USA.The 3200 Series - Series 200 Adapter Fittings by RSES are designed to extend pipe lengths. A durable, all brass construction makes these connectors ideal for industrial, truck and mobile applications. These fittings can connect any 2 inch pipe size and have a pressure range between 500-1000 psi, with temperatures ranging from -65˚ to +250˚ Fahrenheit. Also available in sizes from 1/8” up to 6”.The 3200# extender adapter fitting is designed for applications with tubing sizes from 1/2" to 2". It features a ferruled body made of bronze that provides protection against corrosion, so the fitting can be used at various water pressure levels. The female end is threaded and has three set screws.
