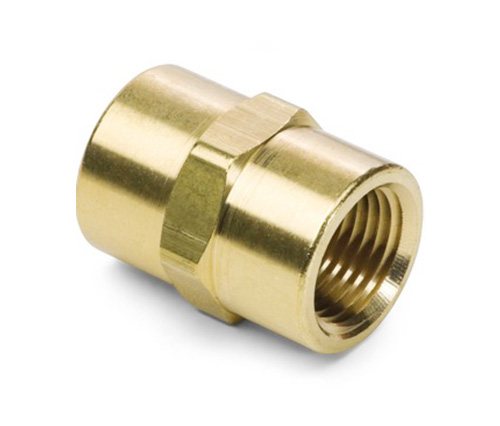

3300 Brass Fittings Coupling

3300 Brass Fittings Coupling

Product Features:                                                   Markets:
■■ All brass construction                                            ■■ Industrial
■■ Meets functional requirements of                       ■■ Construction
SAE J530 and SAE J531                                              ■■ Heavy duty truck
■■ Threads made to dryseal standards                    ■■ Mobile
■■ Both forgings and extrusions available              ■■ Factory/process automation

Applications:                                                         Compatible Tubing:
■■ Air Lines                                                                    ■■ Copper
■■ Water Line                                                                ■■ Brass
■■ Cooling Lines                                                           ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Contact Us

SPECIFICATIONS

Reference Part No:
3300  -  207P  -  371  -  103AH  -  103B

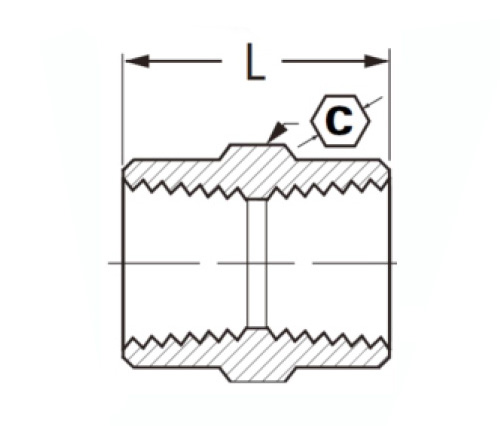

PART#

Thread size

C

L

3300-AA

1/8×1/8

9/16

.75

3300L-AA

1/8×1/8

1/2

.75

3300-BB

1/4×1/4

3/4

1.12

3300L-BB

1/4×1/4

11/16

.90

3300LL-BB

1/4×1/4

5/8

0.88

3300-CC

3/8×3/8

7/8

1.12

3300L-CC

3/8×3/8

13/16

1.00

3300-DD

1/2×1/2

1-1/16

1.50

3300L-DD

1/2×1/2

15/16

1.19

3300-EE

3/4×3/4

1-1/4

1.53

3300L-EE

3/4×3/4 1-1/4 1.19

3300-HH

1"×1" 1-1/2 1.89

L:Light

*REF.SAE NO.130138

Our 3300 series brass fittings are made to the highest quality standards for use in industrial, mobile and factory automation applications.  We stock all of the most common diameters and configurations, as well as many custom sizes. All of our products are both forged and extruded from solid brass billets, providing maximum strength and durability over less expensive options that are just stamped out of sheet metal.  All threads are made to dryseal standards for reliable operation at high pressures.This product features brass construction and meets functional requirements of SAE J530 and SAE J531. Both forgings and extrusions are available, as well as industrial applications in heavy truck and mobile equipment manufacturing. Compatible tubing includes copper, brass and iron pipe; this fitting may also be used with air lines, water lines and cooling lines.
