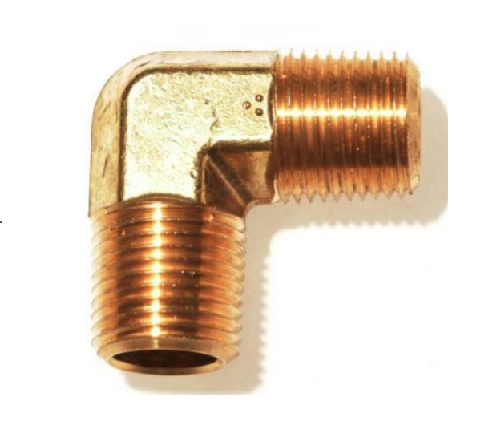

3550# Brass Fittings Forged 90 Male Elbow Pipe Fittings

Product Features:       Markets:
■■ All brass construction ■■ Industrial
■■ Meets functional requirements of ■■ Construction
SAE J530 and SAE J531 ■■ Heavy duty truck
■■ Threads made to dryseal standards ■■ Mobile
■■ Both forgings and extrusions available   ■■ Factory/process automation

Applications: Compatible Tubing:
■■ Air Lines   ■■ Copper
■■ Water Line   ■■ Brass
■■ Cooling Lines ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

SPECIFICATIONS

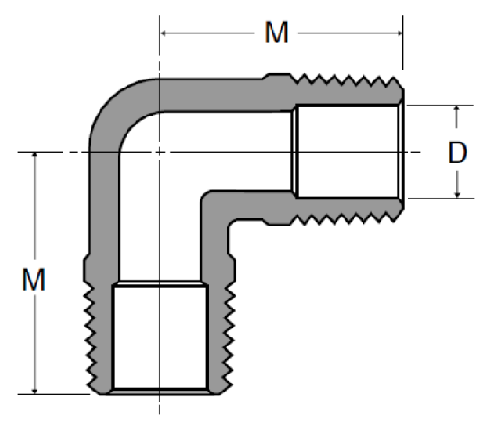

PART#	Thread size	D	M	N
3550-A	1/8×1/8	.219	.79
3550-B	1/4×1/4	.312	.87
3550-C	3/8×3/8	.438	1.00
3550-D	1/2×1/2	.562	1.38
3550-BA	1/4×1/8	.219/.312	.87	.87
3550-CB	3/8×1/4	.438/.312	1.00	.90
3550-DC	1/2×3/8	.562/.438	1.38	1.00

All brass construction is zinc plated and meets functional requirements of SAE J530 and SAE J531. Designed for use in mobile equipment, heavy duty truck and factory applications, this fitting features a male end that is soldered or brazed directly to the tubing or pipe.The 3550 series is a standard forged 90 degree elbow made of forged brass. This product is compatible with air, water, other liquids and gases in any temperature range from -65˚F to +250˚F. The 3550 series has many applications including tube rack systems, industrial machinery and mobile equipment.Our line of SAE 90 degree elbow style fittings are designed for use on air lines, water lines, and industrial applications. The fittings feature brass construction and come with many options such as thread number, size and type of tubing.
