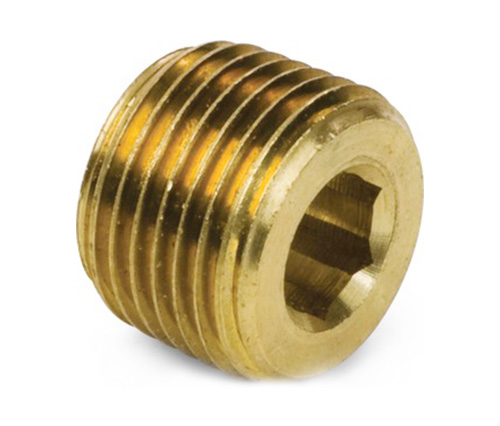

3153# Hex Socket Plug Brass Pipe Fittings

3153# Hex Socket Plug Brass Pipe Fittings

Product Features:                                                   Markets:
■■ All brass construction                                            ■■ Industrial
■■ Meets functional requirements of                       ■■ Construction
SAE J530 and SAE J531                                              ■■ Heavy duty truck
■■ Threads made to dryseal standards                    ■■ Mobile
■■ Both forgings and extrusions available              ■■ Factory/process automation

Applications:                                                         Compatible Tubing:
■■ Air Lines                                                                    ■■ Copper
■■ Water Line                                                                ■■ Brass
■■ Cooling Lines                                                           ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
3153  -  219P  -  109CS  -  118

Contact Us

SPECIFICATIONS

PART#

Thread size

Socket Hex

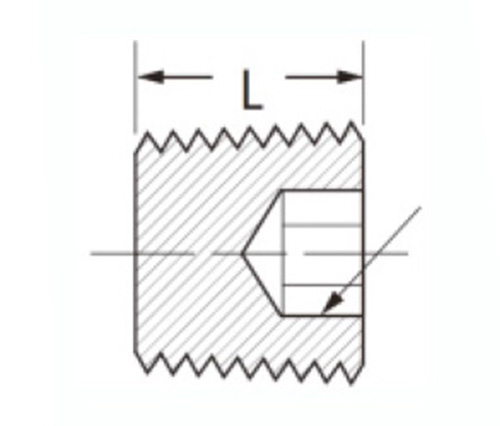

L

3153-A

1/8

3/16

.18

3153-B

1/4

1/4

.26

3153-C

3/8

15/16

.31

3153-D

1/2

3/8

.39

3153-E

3/4

9/16

.56

The 3153 Series are all-brass hex socket fittings with an ANSI B16.5 Flanged Connector face. As an integral part of the 3153 Series, this unique design provides a solid visual indicator that the connector is properly aligned with the valve port. The male side of this coupling features a hex head and has 6 flats along its length. The female side has a 3⁄8" NPT pipe thread at each end.This product is for use with SAE J530 or SAE J531 tubing. The hex socket sleeve is made from seamless drawn brass and can be used on PEX-AL-PEX tubing and reinforcement bar radiused edges. Socket sleeves are an economical way to attach fittings to the tube. We recommend using these sleeves with plastic cap style fitting end attachments
