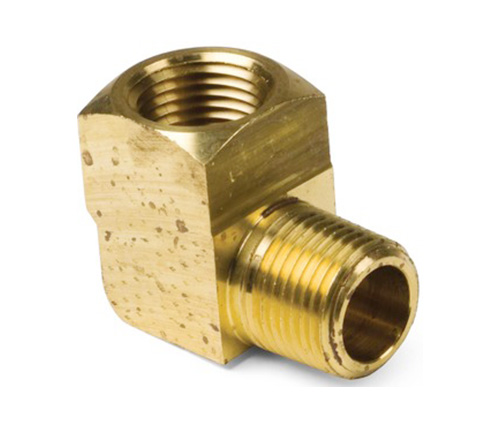

3400# Brass Pipe Fittings 90 Degree Street Elbow

3400# Brass Pipe Fittings 90 Degree Street Elbow

Product Features:                                                   Markets:
■■ All brass construction                                            ■■ Industrial
■■ Meets functional requirements of                       ■■ Construction
SAE J530 and SAE J531                                              ■■ Heavy duty truck
■■ Threads made to dryseal standards                    ■■ Mobile
■■ Both forgings and extrusions available              ■■ Factory/process automation

Applications:                                                         Compatible Tubing:
■■ Air Lines                                                                    ■■ Copper
■■ Water Line                                                                ■■ Brass
■■ Cooling Lines                                                           ■■ Iron Pipe

Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
2202P  - 3400 -  304  -  115  -  202  -  116A  -  28156 to 2816

Contact Us

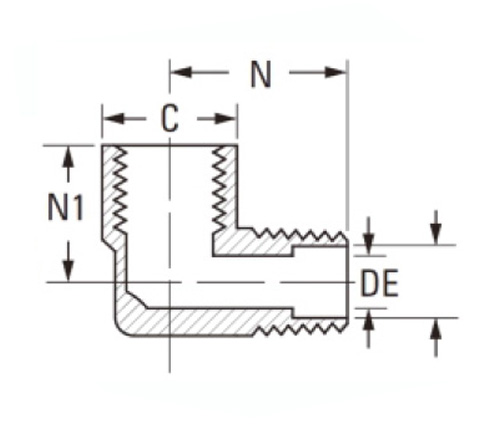

PART# Thread Size C D N N1
3400-AA 1/8×1/8 9/16 .219 .66 .47
3400-BB 1/4×1/4 11/16 .315 .91 .72
3400-CC 3/8×3/8 13/16 .438 .97 .78
3400-DD 1/2×1/2 1" .562 1.25 1.03
3400-EE 3/4×3/4 1-1/4 .750 1.38 1.12

Ref.SAE No.130239

3400# Brass Pipe Fittings 90 Degree Street Elbow  is made from All brass construction  and compatible with both forgings and extrusions; Industrial grade fittings that meet the functional requirements of SAE J530 and SAE J531; Market: Construction, Heavy Duty Truck and Mobile. Both Standards are followed to work on Mobile applications which are Thermoplastic Rubber (TPR) has been developed for use in automotive, industrial and commercial applications where CPVC is incompatible.This weld end 90 degree street elbow is suitable for use in hydraulic systems, especially when working under extreme pressure. It is available in a wide range of sizes and has exceptional corrosion resistance.This fitting is used for connecting air lines that consist of copper tubing. It has a 90 degree angle and is made of brass, so it can withstand harsh weather conditions.
