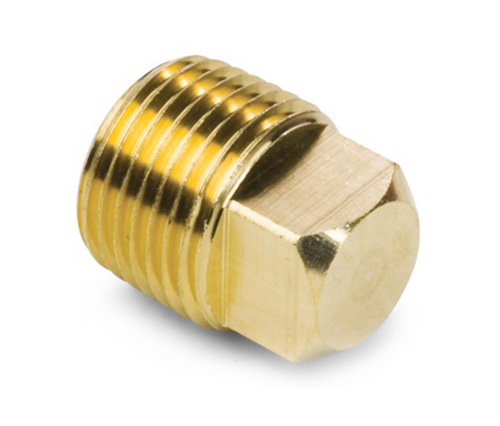

3151# Brass Fittings Square Head Plug Pipe Fittings

3151# Brass Fittings Square Head Plug Pipe Fittings

Product Features:                                                   Markets:
■■ All brass construction                                            ■■ Industrial
■■ Meets functional requirements of                       ■■ Construction
SAE J530 and SAE J531                                              ■■ Heavy duty truck
■■ Threads made to dryseal standards                    ■■ Mobile
■■ Both forgings and extrusions available              ■■ Factory/process automation

Applications:                                                         Compatible Tubing:
■■ Air Lines                                                                    ■■ Copper
■■ Water Line                                                                ■■ Brass
■■ Cooling Lines                                                           ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
3151  -  211P   -  109A  -  109B

Contact Us

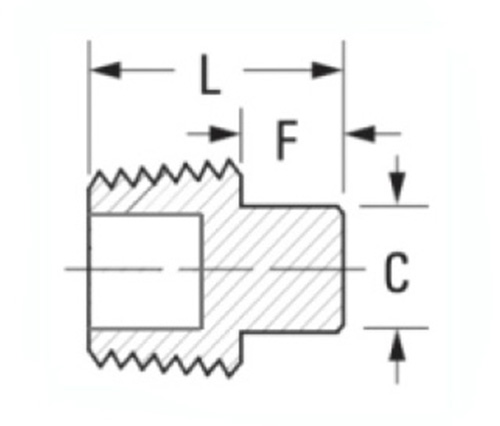

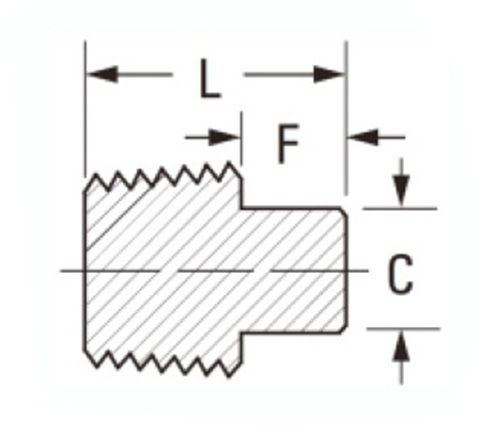

SPECIFICATIONS

PART#

Thread size

C

F

L

3151-A

1/8

.28

.24

.58

3151-B

1/8

.37

.29

.80

*3151L-B

1/4

.37

.29

.80

3151-C

3/8

.43

.32

.80

3151L-C

3/8

.43

.32

.80

3151-D

1/2

.56

.39

1.07

*3151L-D

1/2

.56

.39

1.07

3151-E

3/4

.62

.43

1.11

*3151L-E

3/4

.62

.43

1.11

*Hollow

Our 3151 series offers a full range of tube fittings used in air lines, water lines, and lubrication systems. These brass fittings are manufactured from SAE J530 and SAE J531 materials to meet your working pressures and temperatures for dependable service life. Fittings feature both forgings and extrusions available, as well as corrosion resistant plating covers that can be painted to any OEM standard.All brass construction provides superior corrosion resistance and strength. This fitting meets the J530 standard, and is compatible with dryseal pipe threading. Whether you're building a new air line or replacing older metal fittings with modern technology, these durable fittings will help you get the job done right.
The Square Head Plug Fittings are manufactured from brass and can be used in a variety of applications including cooling lines, water lines, air lines, and electronic connections. Each fitting is compatible with copper tubing or iron pipe as well as brass tubing.
