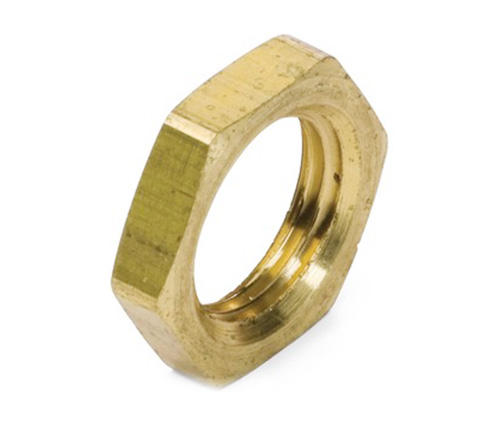

1300# Brass Fittings Locknut Pipe Fittings

Product Features:       Markets:
■■ All brass construction ■■ Industrial
■■ Meets functional requirements of ■■ Construction
SAE J530 and SAE J531 ■■ Heavy duty truck
■■ Threads made to dryseal standards ■■ Mobile
■■ Both forgings and extrusions available   ■■ Factory/process automation

Applications: Compatible Tubing:
■■ Air Lines   ■■ Copper
■■ Water Line   ■■ Brass
■■ Cooling Lines ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
210P - 21102 - 111A - 111B

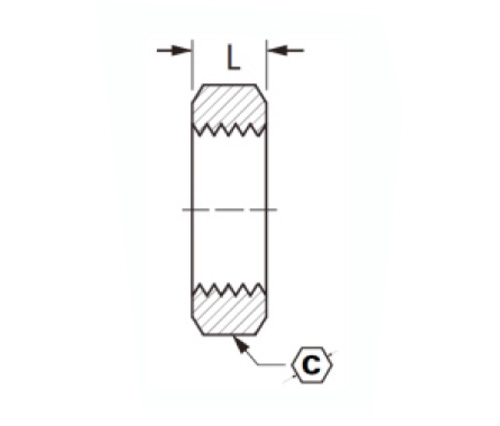

SPECIFICATIONS

PART#	Thread Size	D	L
1300-A	1/8	.281	.19
1300-B	1/4	.375	.25
1300-C	3/8	.500	.25
1300-D	1/2	.625	.25

*Jam nuts
*Straight pipe thread

All brass construction for high tensile strength and durability. Close tolerance threading ensures smooth sealing with minimum effort. Wide range of thread sizes and configurations available to meet functional requirements. Head styles available to work in every configuration including simplex, reducers, tees, couplings, unions and full port designs.This brass fitting is made of high quality material, which ensures its long lifespan. The locknut is applied to the working end of the tubing, which provides additional protection against leakage while cutting. This fitting is highly resistant to corrosion and safe for use in water systems. GWP fittings are made of solid brass, and have a long history of dependable performance in industrial applications. GWP’s current catalog offers tens of thousands of fittings: tube fittings, adapters, nipples and unions, flanges and nipples these products continue to be the benchmark for high quality.
