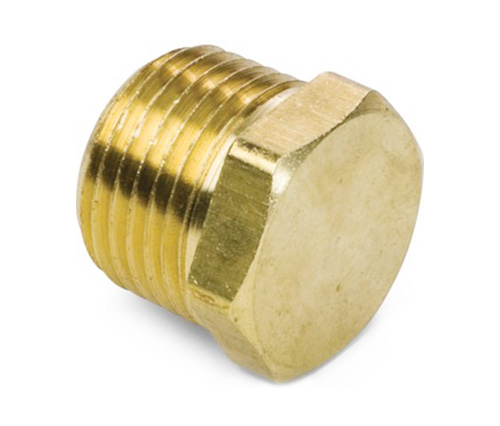

3152# Brass Fittings Cored Hex Plugs Pipe Fittings

3152# Brass Fittings Cored Hex Plugs Pipe Fittings

Product Features:                                                   Markets:
■■ All brass construction                                            ■■ Industrial
■■ Meets functional requirements of                       ■■ Construction
SAE J530 and SAE J531                                              ■■ Heavy duty truck
■■ Threads made to dryseal standards                    ■■ Mobile
■■ Both forgings and extrusions available              ■■ Factory/process automation

Applications:                                                         Compatible Tubing:
■■ Air Lines                                                                    ■■ Copper
■■ Water Line                                                                ■■ Brass
■■ Cooling Lines                                                           ■■ Iron Pipe

Specifications:
Pressure Range Up to 1000 psi
Temperature Range -65˚ to +250˚F

Typical Application:
Grease,fuels,LP and Natural gas ,refrigertion.instrumentation and hydraulic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
218P  -  3152   -  121A  -  103   -  121B  -   PPH  -  218P

Contact Us

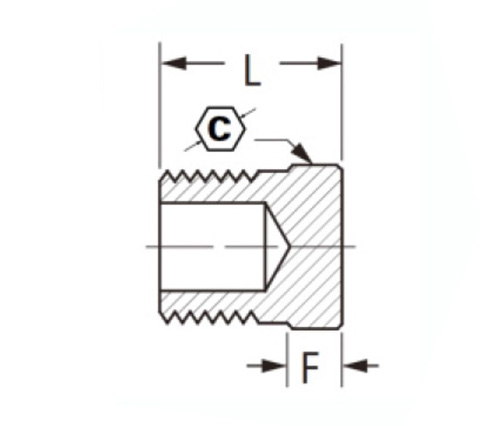

SPECIFICATIONS

PART#

Thread size

C

F

L

3152-A

1/8

7/16

.19

.55

3152-B

1/4

9/16

.18

.62

3152-C

3/8

11/16

.22

.72

3152-D

1/2

7/8

.39

.87

3152-E

3/4

1-1/16

.56

.94

3152# Brass Fittings Cored Hex Plugs Pipe Fittings - This product features brass construction, industrial applications and both forgings and extrusions available. These cored hex plugs were made with SAE J530/J531 thread standards to dryseal specifications. They are compatible with 1/8" NPT coiled tubing and brass tubing. They are also compatible with other materials, temperature ranges and pressure ranges. It is a hex plug fitting with a hex end, so it can be easily installed on the hexagonal pipe. It has a wide range of uses, such as industrial production automation and mobile equipment. The pressure range is up to 1,000 psi and the temperature range is -65F to 250F. The tolerance is +3HUNGRY-MIDSIZE STAINLESS STEEL GRATER FOR FOOD PREPARATION (CHOICE OF COLOR) inches (0-002 inch).
