Brass Hose Barb Fitting 90° Elbow 122

Brass Hose Barb Fitting 90° Elbow 122

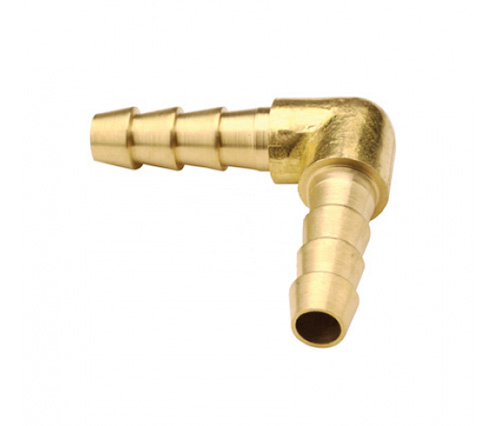

This hose fitting is made of brass and has a 90-degree elbow shape for connecting hose to hose at an angle. This is for a fixed connection between plastic or rubber hose. Barbed fitting on both ends create a tight seal on flexible or semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (sold separately).
This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. The fitting has a temperature range of 32 to 200 degrees F.
Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries.
When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Contact Us

Brass Hose Barb Fitting 90° Elbow 122 DETAILS

Typical Application:
Temperature control circuits,pneumatic circuits, vacuum and fluid systems
test apparatus, lubricant, coolant lines

Pressure:
Will withstand burst pressures of plastic tubing

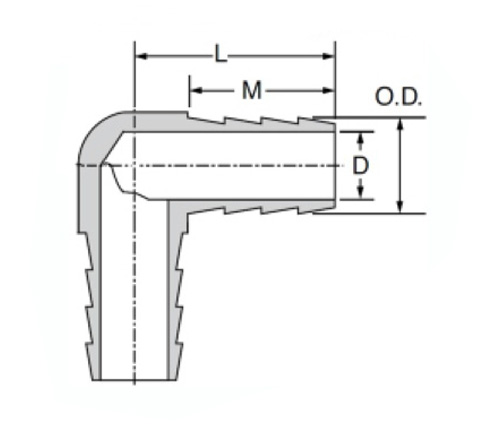

Reference Part No:

PART#

HOSE I.D × HOSE I.D

C

D

M

L

122-3

3/16

5/16

.125

.69

1.44

122-4

1/4

3/8

.187

.97

2.00

122-5

5/16

7/16

.250

.97

2.00

122-6

3/8

1/2

.281

.97

2.00

122-8

1/2

5/8

.375

.97

2.00

122-10

5/8

3/4

.530

.97

2.00

122-12

3/4

7/8

.790

1.15

2.50
