125S Male Swivel Hose Barb

Product Features:
■■ All brass construction
■■ Fluorocarbon O-rings
■■ NPTF, SAE straight thread, metric thread ends
■■ Reusable
■■ Clamp required

Markets:
■■ Industrial
■■ Construction
■■ Heavy duty truck
■■ Mobile

Compatible Tubing:
■■ Rubber Hose
■■ GPH Hose

Reference Part No:
125HBLSV - 32329~32386

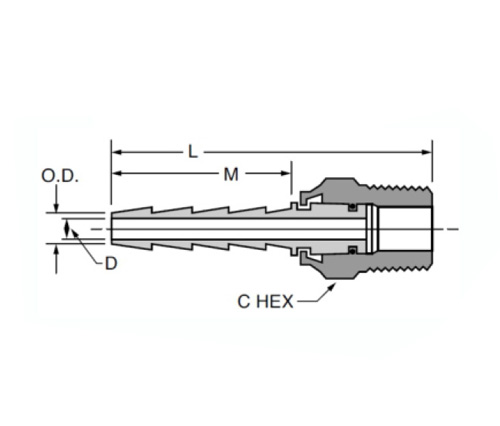

SPECIFICATIONS

PART#	Hose I.D × Thared	C	D	M	L
125S-4A	1/4×1/8	9/16	.281	.97	2.12
125S-4B	1/4×1/4	11/16	.281	.97	2.12
125S-6A	3/8×1/8	9/16	.375	.97	2.12
125S-6B	3/8×1/4	11/16	.375	.97	2.12
125S-8C	1/2×3/8	11/16	.406	.97	2.14
125S-8D	1/2×1/2	7/8	.406	.97	2.33
125S-12E	3/4×3/4	1-1/16	.562	.97	2.33

The 125S (5/8 MNPT SAE Straight Thread) Male Swivel Hose Barb is an all brass construction, with a fluoroelastomer O-ring that ensures a leak-free connection every time. NPTF, SAE straight thread, and metric thread ends are included allowing use on most common air hoses.

The 125S Swivel Hose Barbs have a male and female on either side of the tube allowing it to rotate 360 degrees and prevent kinking, which can cause damage to equipment. All parts are made of brass with fluorocarbon o-rings that resist swelling, degradation, and moisture absorption. Fittings are reusable and cannot be cross-threaded. They feature SAE straight thread ends, NPTF threads, metric threads, or all three types (straight, unisex fitting ends). The fittings are reamed after machining to ensure that they meet all industry standards for maximum holding capacity.

The Swivel Hose Barb with O-Ring is a small fitting that is used on water transfer hoses, lines and fittings. It features a female thread design and comes in variations for different types of tubing.
