146SV  Hose Barb to Swivel 45° Female Flare

146SV Hose Barb to Swivel 45° Female Flare

Product Features:
■■ All brass construction
■■ Fluorocarbon O-rings
■■ NPTF, SAE straight thread, metric thread ends
■■ Reusable
■■ Clamp required

Markets:
■■ Industrial
■■ Construction
■■ Heavy duty truck
■■ Mobile

Compatible Tubing:
■■ Rubber Hose
■■ GPH Hose

Reference Part No:
146HBLFSV  -  144  -  fss  -  128

Contact Us

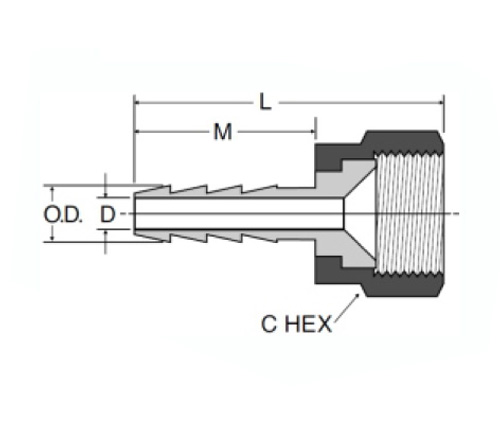

SPECIFICATIONS

PART#

HOSE I.D×FEMALE FLARE

C

D

M

L

*146SV-4-4

1/4×7/16-20

9/16

.187

.97

1.55

*146SV-4-6

1/4×5/8-18

3/4 .187 .97 1.65

*146SV-6-6

3/8×5/8-18

3/4 .281 .97 1.65

*146SV-8-8

1/2×3/4-16

7/8 .375

.97

1.70
**146SV-4-4

1/4×7/16-20

9/16 .187 .97 1.55

**146SV-6-6

3/8×5/8-18

3/4 .281 .97 1.65

*Female 45 SAE Flare Swivel

**Female 37 JIC Flare Swivel

Snap-on swivel 45° female hose barb to flare, 1/4" or 3/8" NPT male thread, universal joint includes O-ring. The 146HBLFSV has a straight thread on one side and a flare on the other. This eliminates the need for a second pipe fitting for a 45 degree angle. It is compatible with 303, 304 and 316 SAE stainless steel as well as rubber hose or garden hose applications.
This product is ideal for tight spaces, as it provides an airtight seal when connecting two pipes together. The O-rings won't deteriorate or crack over time, so the hose can be used multiple times. It also comes with both straight and metric thread ends, making it perfect for various jobs.
The 146SV is a 1" Swivel to SAE Straight Thread 90° Elbow. Hose Barbs and other adapters are available in many different sizes and styles, including barbed or slip-on and straight or 45˚ elbows. The individual components are reusable, which reduces disposal costs associated with old hoses that have been cut off of equipment.
