Hose Barb Male Adapter Connector 125

Hose Barb Male Adapter Connector 125

Barb Male Adapter Connector, control, change the direction of, and terminate the flow in piping and hose systems. They are made of brass, stainless steel, galvanized steel, and other materials that resist corrosion, pressure, and wear.
Hose fittings have various types of connections, including threaded, barbed, push-to-connect, dry disconnect, and others including those based on internationally-accepted specifications. Hose fittings are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.

Contact Us

Hose Barb Male Adapter Connector 125 DETAILS

Typical Application:
Temperature control circuits,pneumatic circuits, vacuum and fluid systems
test apparatus, lubricant, coolant lines

Pressure:
Will withstand burst pressures of plastic tubing

Reference Part No:
PGH  -  101  -  102  -  210A  -  125HBL  -  105B-1  -  KF-PS  -  MPB

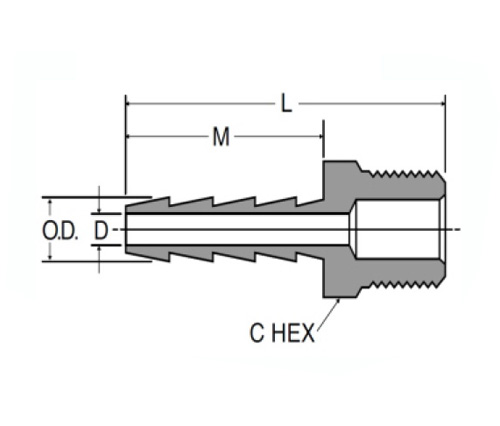

PART#

Hose I.D×Thared

C

D

M

L

125-2A

1/8×1/8

7/16

.093

.50

1.01

125-3A

3/16×1/8

7/16

.125

.70

1.17

125-3B

3/16×1/4

9/16

.125

.70

1.21

125-4A

1/4×1/8

7/16

.187

.97

1.54

125-4B

1/4×1/4

9/16

.187

.97

1.72

125-4C

1/4×3/8

11/16

.187

.97

1.71

125-4D

1/4×1/2

7/8

.187

.87

1.72

125-5A

5/16×1/8

7/16

.250

.97

1.54

125-5B

5/16×1/4

9/16

.250

.97

1.72

125-5C

5/16×3/8

11/16

.250

.97

1.71

125-6A

3/8×1/8

7/16

.281

.97

1.53

125-6B

3/8×1/4

9/16

.281

.97

1.75

125-6C

3/8×3/8

11/16

.281

.97

1.71

125-6D

3/8×1/2

7/8

.281

.97

1.86

125-8B

1/2×1/4

9/16

.375

.97

1.72

125-8C

1/2×3/8

11/16

.375

.97

1.72

125-8D

1/2×1/2

7/8

.375

.97

1.86

125-8E

1/2×3/4

1-1/16

.375

.97

1.94

125-10C

5/8×3/8

11/16

.468

.97

1.76

125-10D

5/8×1/2

7/8

.468

.97

1.86

125-10E

5/8×3/4

1-1/16

.468

.97

1.87

125-12D

3/4×1/2

7/8

.562

.97

1.79

125-12E

3/4×3/4

1-1/16

.562

.97

1.87

125-16E

1"×3/4

1-1/16

.875

1.18

2.08

125-16H

1"×1"

1-3/8

.875

1.18

2.34

*316 stainless steel can be supplied
