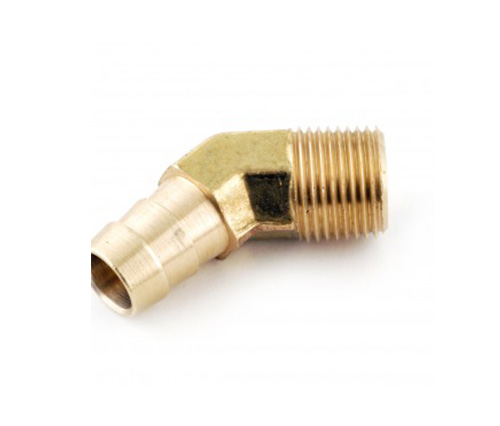

1/8 NPT x 1/4 Hose Barb Fitting 45° Male Elbow

1/8 NPT x 1/4 Hose Barb Fitting 45° Male Elbow 139
45-degree elbow for connecting hose to threaded pipe at an angle Fitting connects to hose on one end and has an NPT male connector on.
Fitting connects to hose on one end and has an NPT male connector on the other.
Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
Barbed fitting creates a tight seal on flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (sold separately)·For use with plastic or rubber hose.

Typical Application:
Temperature control circuits,pneumatic circuits, vacuum and fluid systems
test apparatus, lubricant, coolant lines

Pressure:
Will withstand burst pressures of plastic tubing

SPECIFICATIONS

Reference Part No:
140 - HE145 - 139HB - KF-PS45 - 13945

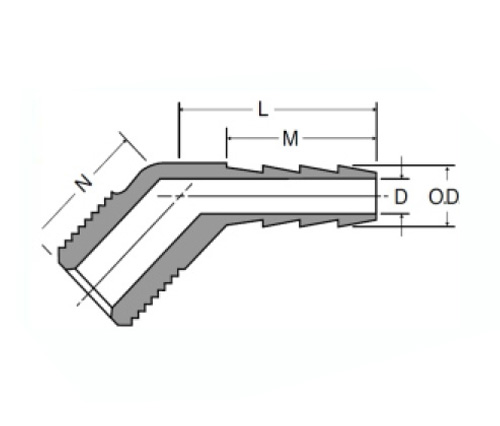

PART#	HOSE I.D×MALE NPTF	D	N	M	L
139-4A	1/4×1/8	.187	.55	.63	.91
139-4B	1/4×1/4	.187	.62	.76	1.04
139-5A	5/16×/8	.250	.60	.83	.83
139-6A	3/8×1/8	.281	.66	.63	.83
139-6B	3/8×1/4	.281	.84	.63	.82
139-6C	3/8×3/8	.281	.87	.63	.93
139-8B	1/2×1/4	.375	.84	.63	1.00
139-8C	1/2×3/8	.375	.87	.68	1.00
139-8D	1/2×1/2	.375	.94	.68	1.15

1/8 NPT x 1/4 Hose Barb Fitting 45° Male Elbow 139. Connects to hose on one end and has an NPT male connector on the other. Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability. For use with plastic or rubber hose.

This 1/8 NPT x 1/4 Hose Barb 45° Male Elbow is for connecting hose to threaded pipe at an angle. This fitting connects to hose on one end and has an NPT male connector on the other. The fitting connects to hose on one end and has an NPT male connector on the other. Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.

The 1/8" NPT X 1/4" HOSE BARB FITTING 45° MALE ELBOW is a fitting that connects to hose on one end and has an NPT male connector on the other. Made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability, this fitting connects to hose on one end and has an NPT male connector on the other.
