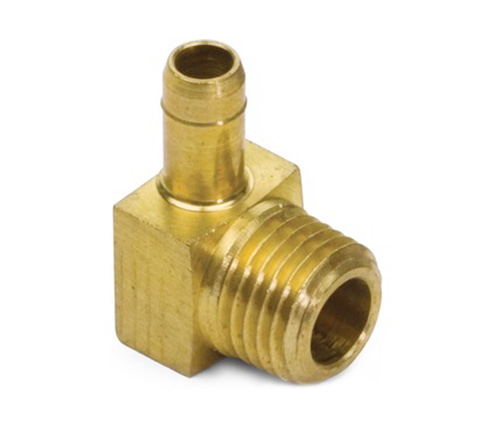

29# Mini Hose Barb Male Elbow

29# Mini Hose Barb Male Elbow

Product Features:
■■ Compact
■■ One piece
■■ No clamp required
■■ Good vibration resistance

Markets:
■■ Pneumatic
■■ Environmental control

Applications:
■■ Pneumatic Systems
■■ Climate Control
■■ Humidifiers
■■ Filters

Compatible Tubing:
■■ Polyethylene

Contact Us

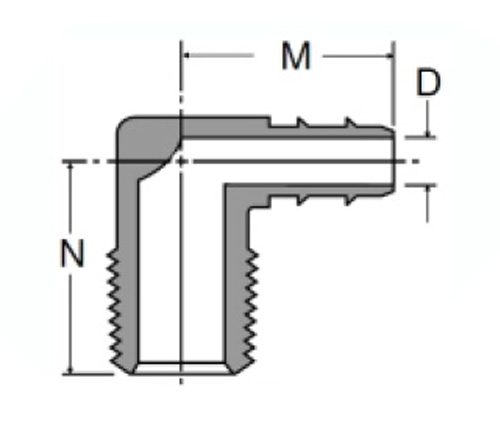

SPECIFICATIONS

All size are tube o.d(i.d)

PART#

HOSE O.D×MALE THARED

D

M

N

29-5/32A

5/32×1/8

.062

.56

.63

29-4-1

1/4×1/16

.120

.62

.60

29-4A

1/4×1/8

.120

.69

.63

29-4B

1/4×1/4

.120

.72

.72

29-6A

3/8×1/8

.187

.69

.69

29-6B

3/8×1/4

.187

.75

.75

28-8B

1/2×1/4

.312

.94

.74

28-8C

1/2×3/8

.312

.94

.81



The Mini Hose Barb Male Elbow is a compact and one-piece fitting, which requires no clamping. It is a good vibration resistance, and can be widely used in pneumatic systems, environmental control systems, humidifiers, filters, etc. The compatible tubing is polyethylene.
This brass elbow is used in pneumatic and environmental control applications. Its compact design makes it ideal for tight spaces, such as humidifiers or filters. The one-piece construction eliminates the need for clamps, which also reduces vibration resistance.
Designed to work with lightweight flexible stainless steel wire braided hoses, the short bend radius provides vibration resistance, which reduces hose abrasion and eliminates need for clamps. We also offer custom sizes to meet your needs.
