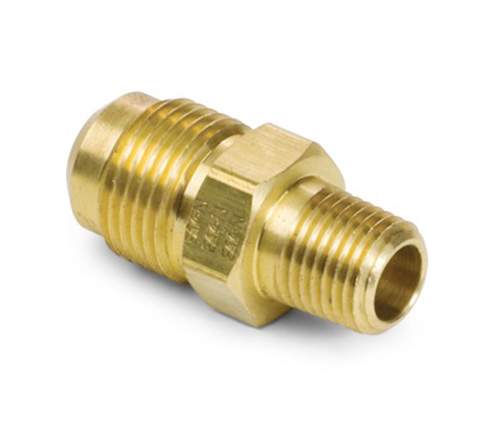

Male SAE Adapter Flare Fittings 3/8×1/4 O.D 48
Temperature Range: -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Cut tubing to desired lenght. Make sure all burrs are removed and ends are cut square.
Slide nut on tube. Threaded and “A” of nut must face out.
Flare end of tube with a 45° flaring tool. a-Measure flare diameter b-Examine flare for excessive thin out.
Lubricat threads and assemble to fitting body. Nut should be turned hand out.
Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn.
Typical Application:
LP and natural gas,flammable liquids,instrumentation,
refrigeration,power steering,hydraulic and pneumatic systems
Conformance:
Meets specifications and standards of ASA,ASME and SAE.
Reference Part No:
U1 - 48 - 10253-10280 - s48

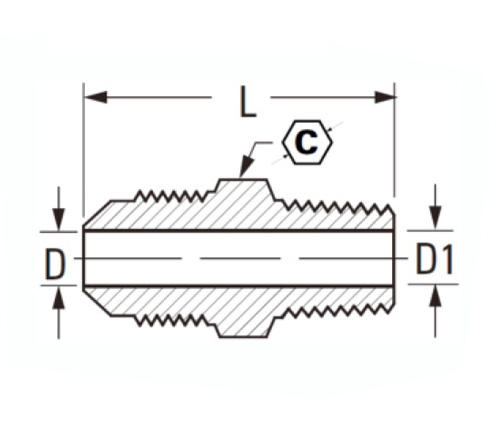

PART# |
Flare O.D×Thread |
C |
D |
D1 |
L |
48-2A |
1/8×1/8 |
7/16 |
.079 |
.219 |
.47 |
48-3A |
3/16×1/8 |
7/16 |
.126 |
.219 |
.58 |
48-4A |
1/4×1/8 |
7/16 |
.189 |
.219 |
.69 |
48-4B |
1/4×1/4 |
9/16 |
.189 |
.312 |
.79 |
48L-4B |
1/4×1/4 |
9/16 |
.189 |
.330 |
.88 |
48-40 |
1/4×3/8 |
11/16 |
.189 |
.438 |
1.06 |
48L-4C |
1/4×3/8 |
11/16 |
.189 |
.438 |
1.19 |
48-4D |
1/4×1/2 |
7/8 |
.189 |
.562 |
1.31 |
48L-4D |
1/4×1/2 |
7/8 |
.189 |
.562 |
1.28 |
48-5A |
5/16×1/8 |
1/2 |
.219 |
.219 |
1.38 |
48-5B |
5/16×1/4 |
9/16 |
.219 |
.312 |
1.44 |
48L-5B |
5/16×1/4 |
9/16 |
.219 |
.330 |
1.53 |
48-5C |
5/16×3/8 |
9/16 |
.219 |
.438 |
1.69 |
48-6A |
3/8×1/8 |
5/8 |
.282 |
.219 |
1.88 |
48-6B |
3/8×1/4 |
5/8 |
.282 |
.312 |
1.87 |
48L-6B |
3/8×1/4 |
5/8 |
.282 |
.330 |
1.31 |
48-6C |
3/8×3/8 |
11/16 |
.282 |
.438 |
1.44 |
48L-6C |
3/8×3/8 |
11/16 |
.282 |
.438 |
1.37 |
48-6D |
3/8×1/2 |
7/8 |
.282 |
.562 |
1.69 |
48L-6D |
3/8×1/2 |
7/8 |
.282 |
.562 |
1.44 |
48-8B |
1/2×1/4 |
3/4 |
.408 |
.312 |
1.60 |
48-8C |
1/2×3/8 |
3/4 |
.408 |
.438 |
1.62 |
48L-8C |
1/2×3/8 |
3/4 |
.408 |
.438 |
1.46 |
48-8D |
1/2×1/2 |
7/8 |
.408 |
.562 |
1.73 |
48L-8D |
1/2×1/2 |
7/8 |
.408 |
.562 |
1.62 |
48-8E |
1/2×3/4 |
1-1/16 |
.408 |
.750 |
1.75 |
48-10B |
5/8×1/4 |
7/8 |
.500 |
.312 |
1.79 |
48-10C |
5/8×3/8 |
7/8 |
.500 |
.438 |
1.79 |
48L-10C |
5/8×3/8 |
7/8 |
.500 |
.438 |
1.67 |
48-10D |
5/8×1/2 |
7/8 |
.500 |
.562 |
1.98 |
48L-10D |
5/8×1/2 |
7/8 |
.500 |
.562 |
1.80 |
48-10E |
5/8×3/4 |
1-1/16 |
.500 |
.750 |
1.85 |
48-12D |
3/4×1/2 |
1-1/16 |
.625 |
.562 |
2.17 |
48-12E |
3/4×3/4 |
1-1/16 |
.625 |
.750 |
2.08 |
*DIMENSION DATA CAN CHANGE WITHOUT NOTICE
"L"means light pattern.
These fittings are completely interchangeable with full pattern fittings,but have been modified insome way.
This modification is usually in the length of the pipe threads,Used in plumbing and light industrial applications
*Ref.SAE.No.010102
