Forged Swivel SAE Nut Connector Fittings
  • Forged Swivel SAE Nut Connector Fittings
  • Forged Swivel SAE Nut Connector Fittings

Forged Swivel SAE Nut Connector Fittings

Forged Swivel SAE Nut Connector Fittings U44O
SAE Swivel Flare Fitting
Cut tubing to desired lenght. Make sure all burrs are removed and ends are cut square.
Slide nut on tube. Threaded and “A” of nut must face out.
Flare end of tube with a 45° flaring tool. a-Measure flare diameter b-Examine flare for excessive thin out.
Lubricat threads and assemble to fitting body. Nut should be turned hand out.
Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn.

Typical Application:
LP and natural gas,flammable liquids,instrumentation,
refrigeration,power steering,hydraulic and pneumatic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Contact Us

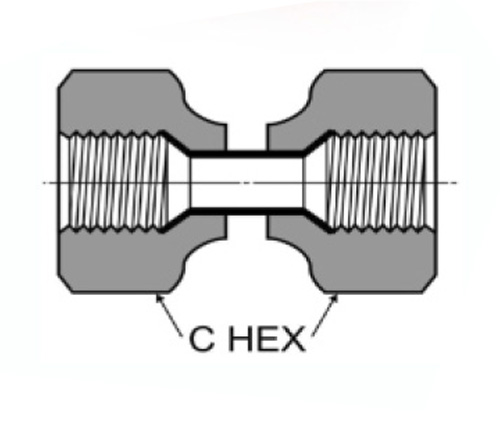

SPECIFICATIONS

Reference Part No:
1350  -  US4  -  14FSV  -  34  -  10481~10486

PART#

TUBE O. D

C

U440-4

1/4

9/16

U440-5

5/16

5/8

U440-6

3/8

3/4

U440-8

1/2

7/8

U440-10

5/8

1-1/16

U440-12

3/4

1-1/4
