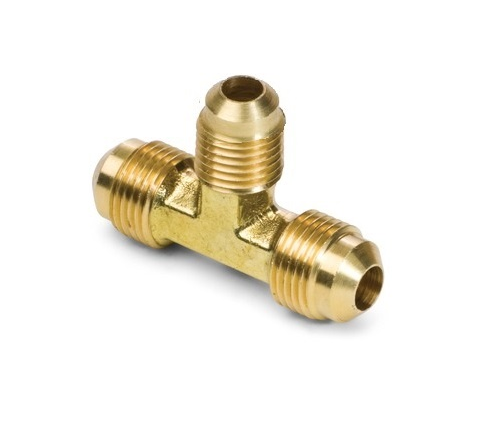

SAE 45° Forged Flare Union Tee Fittings

SAE 45° Forged Flare Union Tee Fittings

SAE 45° Forged Flare Union Tee Fittings 44

Construction - Two piece body and nut, straight barstock & forged fittings.
Good Vibration resistance - use long nut when greater vibration resistance is required.
Reusability - Can be assembled and re-assembled repeatedly & Resists mechanical pull



Contact Us

SAE 45° Forged Flare Union Tee Fittings DETAILS

Typical Application:
LP and natural gas,flammable liquids,instrumentation,
refrigeration,power steering,hydraulic and pneumatic systems

Conformance:
Meets specifications and standards of ASA,ASME and SAE.

Reference Part No:
244F  -  T2  -  144F  -  S144

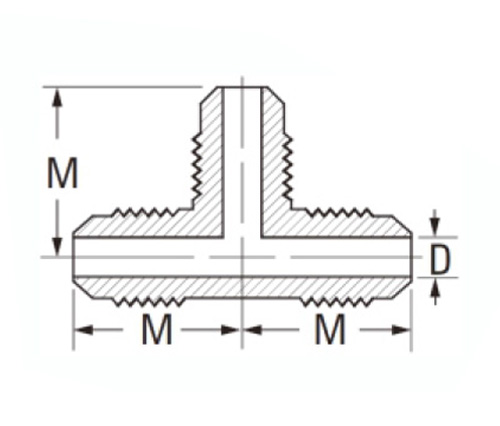

PART#

TUBE O.D

D

M

N

44-2

1/8

.079

.67

.67

44-3

3/16

.126

.75

.75

44-4

1/4

.189

.78

.78

44-5

5/16

.219

.91

.91

44-6

3/8

.282

1.00

1.00

44-8

1/2

.408

1.16

1.16

44-10

5/8

.500

1.41

1.41

44-12

3/4

.625

1.64

1.64

*Ref.SAE No.010401
