This Metals nut compression tube fitting is made of brass, connects to a tube or fitting, and is suitable for use with water, gas, oil, and vacuum lines. It is made of brass for corrosion resistance, ductility at high temperatures and low magnetic permeability. This fitting connects to a tube or fitting and can be used with copper, brass, aluminum, or steel tubing. This fitting is part of an assembly that resists mechanical pullout, for a more secure connection, and can be assembled and reassembled without affecting the seal. This nut compression tube fitting has an operating temperature range of -65 to +250 degrees F and is suitable for use with fuel and gas systems, plumbing, refrigeration, and vacuum applications.
Typical Application:
Use with copper,aluminum and thermoplastic tub-ing.Not recommended
for steel tubing .Manufactured for low and medium pressure tubing
connection work where excessive vibration or tube movement is not
involved.Not recommended for application using gas eous media
eous media
Conformance:
Meets specifications and standards of ASA, ASME asn SAE
Reference Part No:
61 - 261 - S61 - 61A

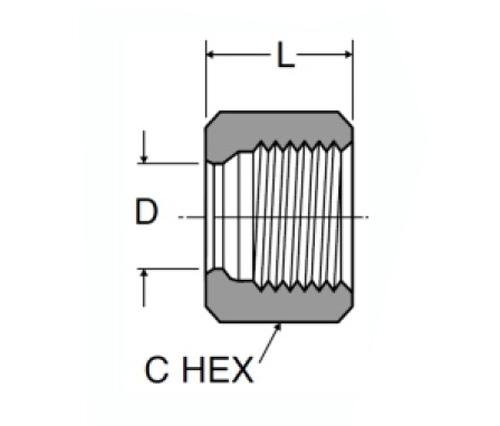

PART# | TUBE O.D | C | D | L |
61-2 | 1/8 | 3/8 | .130 | .38 |
61-3 | 3/16 | 7/16 | .192 | .41 |
61-4 | 1/4 | 1/2 | .255 | .44 |
61-5 | 5/16 | 9/16 | .318 | .44 |
61-6 | 3/8 | 5/8 | .382 | .47 |
61-7 | 7/16 | 11/16 | .444 | .50 |
61-8 | 1/2 | 13/16 | .507 | .62 |
61-10 | 5/8 | 15/16 | .632 | .62 |
61-12 | 3/4 | 1-3/16 | .758 | .69 |
*Ref.SAE No.060110
