282 Male Sae 45° Flaer Adapter

Advantages:
Push‑on Hose Fittings are machined from the
highest quality brass or stainless steel. The barbs are
specifically engineered to work in conjunction with the
l.D. and braid angle of Push‑on Hose, ensuring a tight
connection without clamps.

Assembly:
Push‑on Hose Fittings are designed only for use with
Push‑on Hose. Do not use with any other style or
manufacturer of hose.

Assembly Instructions:
■■ Cut hose cleanly and squarely to length.
■■ Lubricate hose l.D. and barbs with light oil or soapy water.
■■ Push the hose onto the fitting until it bottoms against
the yellow stop ring. This ensures that all of the
barbs are engaged with the hose and will also help
keep the end of the hose from fraying.

Pressure Range
Limited by hose l.D

Reference Part No:
100b-3 - ka-ms - 727 - 282 - 302 - 682 - 945

SPECIFICATIONS

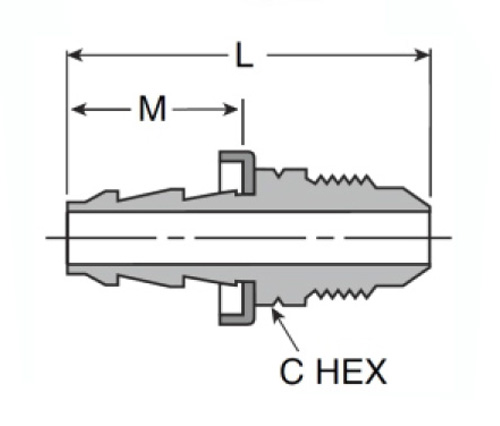

PART#	HOSE I.D×SAE45 ° MALE FLARE	C	M	L
282-4-4	1/4×7/16-20UNF	7/16	.77	1.45
282-4-5	1/4×1/2-20UNF	1/2	.77	1.59
282-5-5	5/16×1/2-20UNF	1/2	.80	1.60
282-6-4	3/8×7/16-20UNF	1/2	.86	1.64
282-6-6	3/8×5/8-18UNF	5/8	.92	1.83
282-8-8	1/2×3/4-16UNF	3/4	1.02	2.04
282-10-10	5/8×7/8-14UNF	7/8	1.50	2.73
282-12-12	3/4×1"1/16-14UNF	1"-1/16	1.50	2.98

Push-on Hose Fittings are machined from the highest quality brass or stainless steel. The barbs are specifically engineered to work in conjunction with the l.D. and braid angle of Push‑on Hose, ensuring a tight connection without clamps. Assembly Instructions: Cut hose cleanly and squarely to length. Lubricate hose l.D. and barbs with light oil or soapy water. Push the hose onto the fitting until it bottoms against the yellow stop ring. This ensures that all of the barbs are engaged with the hose and will also help keep the end of the hose from fraying.
